Operation Manual / Power2 850-M / 4.2 High-pressure stage
4 Disassembly and assembly / 4.4 Removing wall insert
© Copyright 2017 ABB. All rights reserved. HZTL4063_EN Revision A August 2017

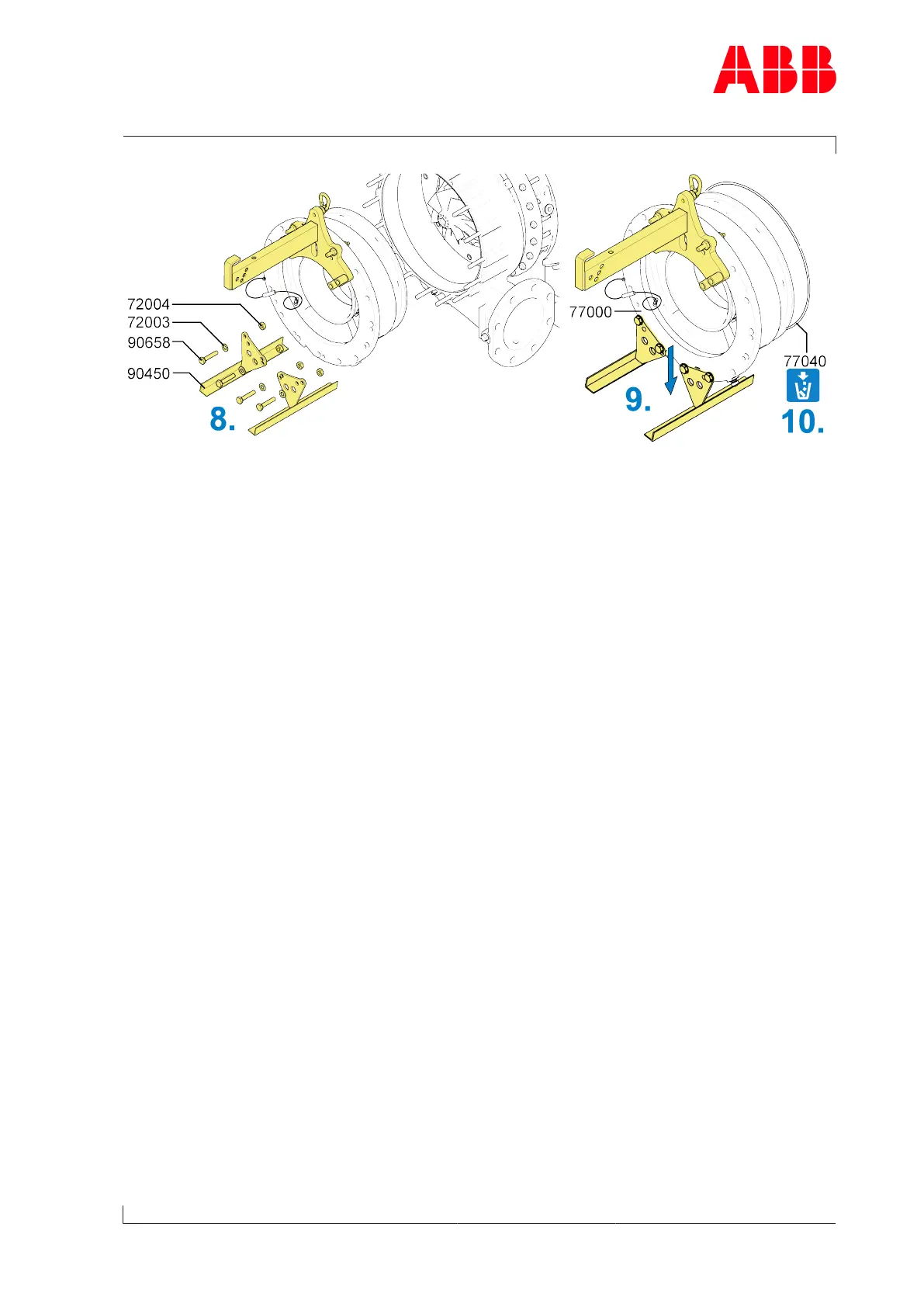

Fig.7: Removing wall insert 3
8. Fit support angle(90450) with screws(90658), washers(72003) and nuts(72004).
9. Put down the wall insert (77000).
10. Remove the O-ring (77040).
Page 13 / 35
