1.10 Lifting of loads
WARNING
Suspended loads
Loads that are not attached according to regulations can cause injury to
personnel or fatal accidents.
u Loads must always be fastened to properly functional lifting gear with a
sufficient load limit.
u Pay attention to the correct attachment of loads on the crane hook.
u People must not stand beneath suspended loads.
Wear safety gloves to protect against mechanical hazards.
Wear safety helmet.

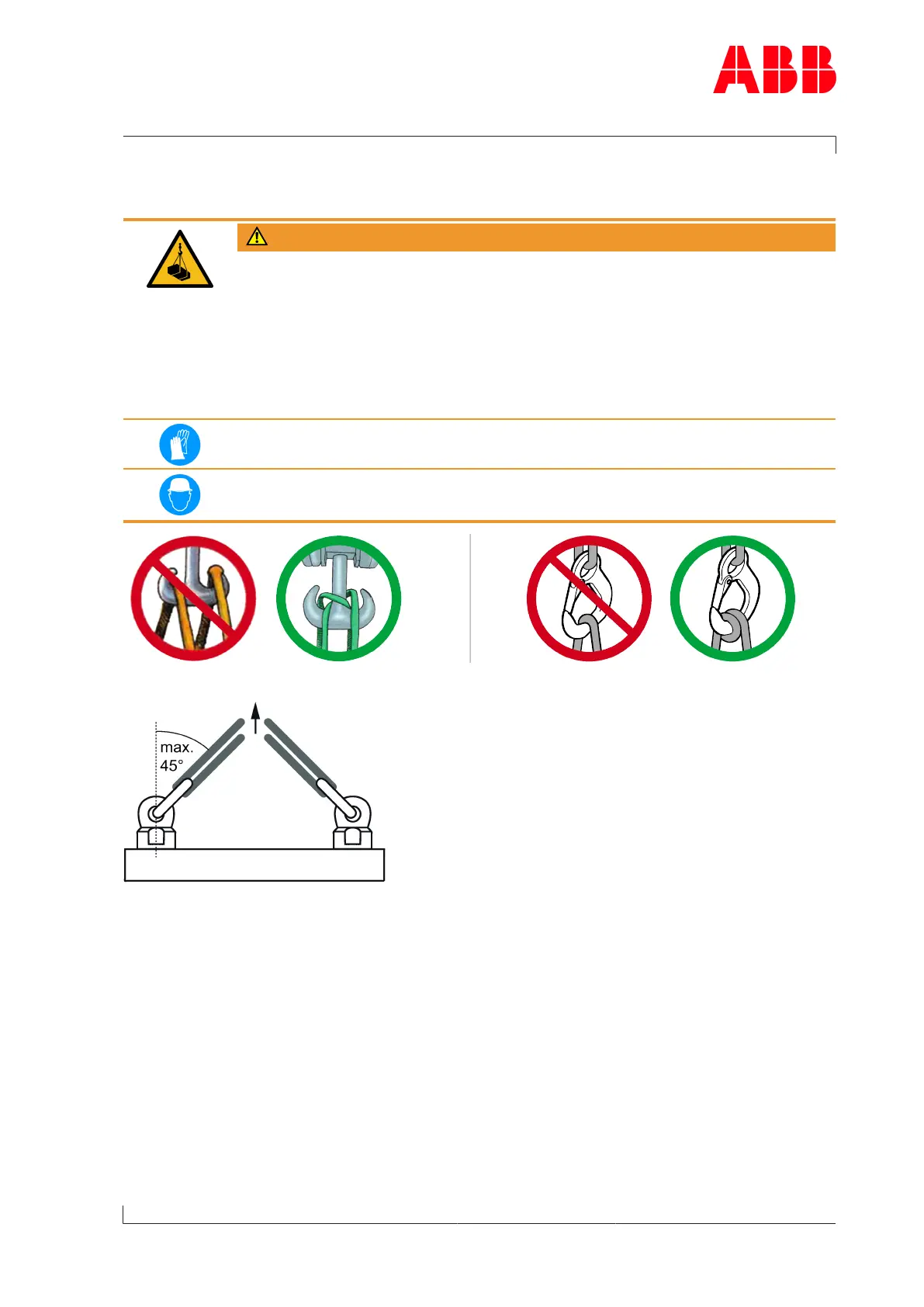

Fig.3: Attachment of loads on the crane hook
Fig.4: Attachment angle
If there are two or more suspension points, the attachment angle of 45° must not be ex-
ceeded. This prevents excessive loading due to diagonal pull.
u Before looping around the components of the low-pressure and high-pressure stage, al-
low them to cool down (maximum 80°C).
u Attach components of the low-pressure and high-pressure stage as described in the re-
spective action steps.
u Use a suitable edge guard if there are sharp edges.
u The assembly devices must be completely screwed in and must not unscrew during use.
u Use assembly devices only for the described applications.
u Put down dismantled components of the low-pressure and high-pressure stage in such a
way that they cannot tip over.
