Operation Manual / Power2 800-M / 2 Safety
1 Safety / 1.7 Warning plates on the low-pressure and high-pressure
stage
© Copyright 2018 ABB. All rights reserved. HZTL4025_EN Revision A March 2018
1.7 Warning plates on the low-pressure and high-
pressure stage
Warning plates are attached to the low-pressure and high-pressure stage, and must be com-
plied with. The warning plates must always be present in the intended locations and must be
legible.

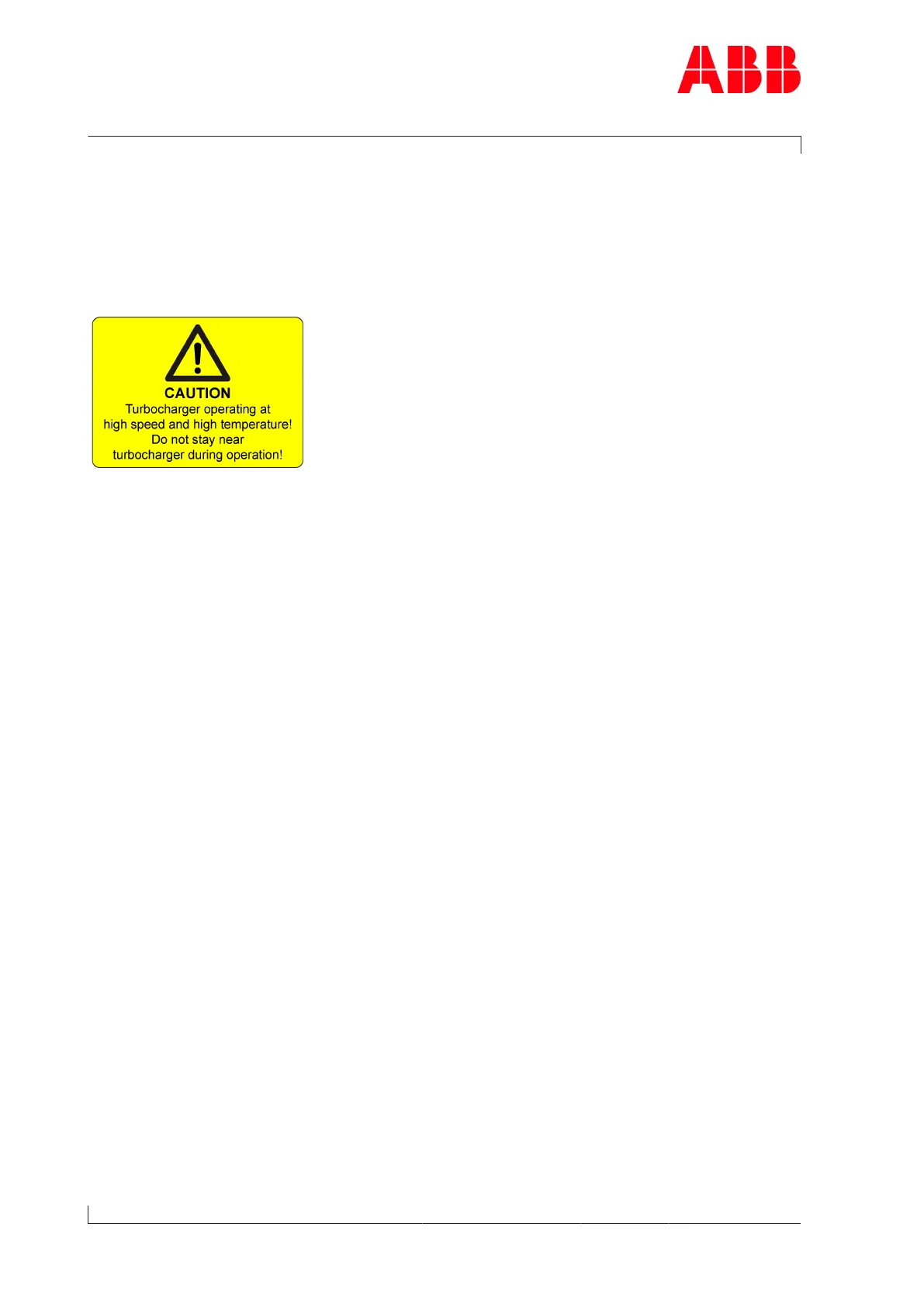

Fig.1: Warning plate
If warning plates are not present in the intended locations or are not legible, they must be
replaced with new warning plates. The information that is required can be found in the Oper-
ation Manual / Product description.
Low-pressure and high-pressure stages supplied to the enginebuilder without insulation
must be retrofitted with warning plates to be affixed to the insulation. This is the responsib-
ility of the enginebuilder.
