4.14 Axial clearance A after assembly
CAUTION
Clearances outside the tolerance
Serious damage to engines or property can be caused by clearances
outside the tolerance and excessively worn parts.
 Have the components assessed and, if necessary, replaced by an ABB
Turbocharging Service Station.

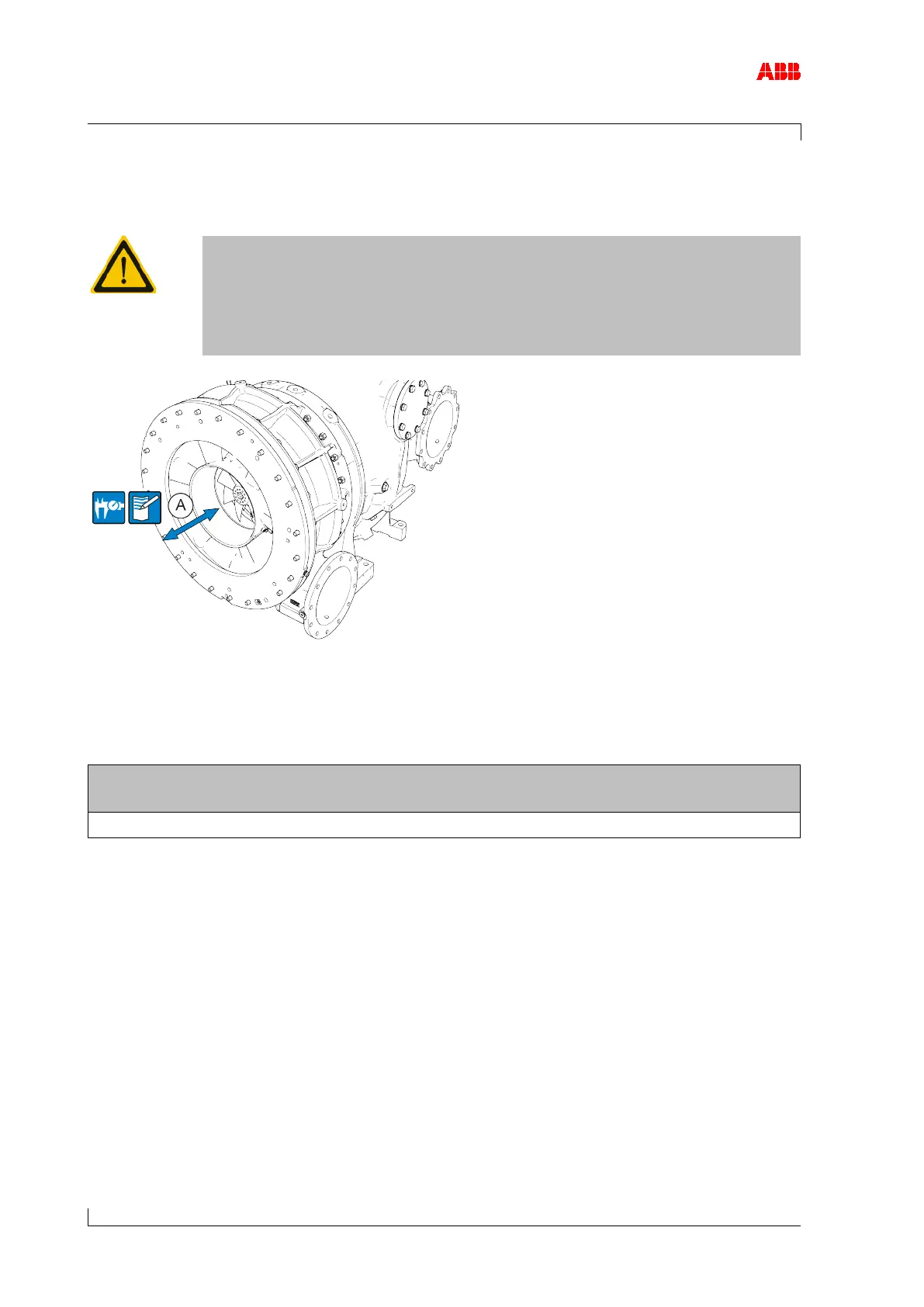

Figure 28: Measuring axial clearance A
The axial clearance (A) must be measured prior to removal and after installation of the
cartridge group.
 Measure and note axial clearance (A).
Axial clearance A
[mm]
0.32 ... 0.53
Table 14: Axial clearance A
