Operation Manual / Power2 850-M / 4.2 High-pressure stage
4 Disassembly and assembly / 4.2 Weights of assemblies
© Copyright 2017 ABB. All rights reserved. HZTL4063_EN Revision A August 2017
4.2 Weights of assemblies
The specified weights of the individual parts or assemblies are rounded-up standard values.

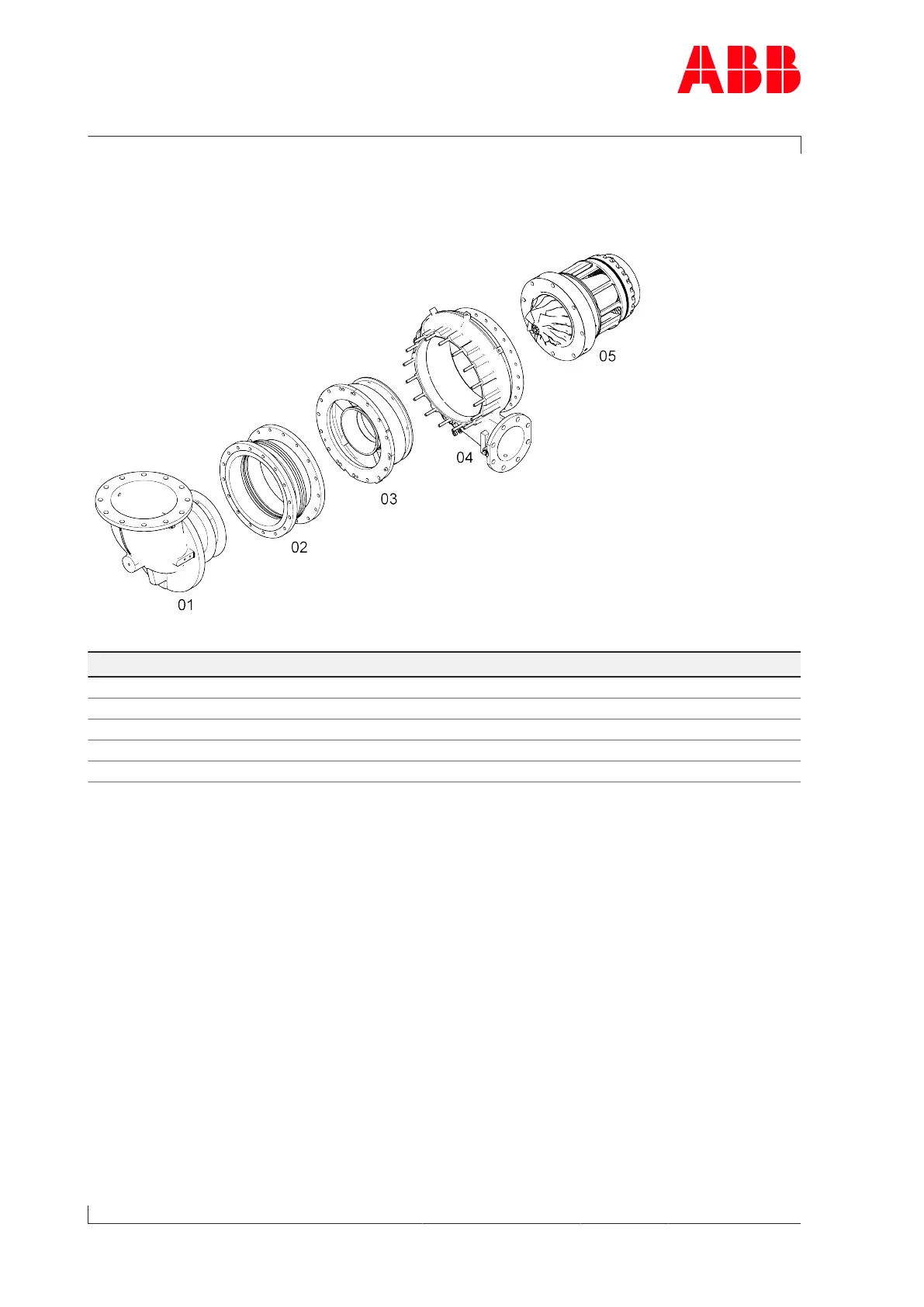

Fig.3: Overview of assemblies
Designation Weight [kg]
01 Air suction branch 85
02 Bellows 40
03 Wall insert 60
04 Compressor casing 70
05 Cartridge group with hood diffuser and nozzle ring 130
Table5: Weights of the assemblies
Page 10 / 35
