Operation Manual / Power2 850-M / 4.2 High-pressure stage
4 Disassembly and assembly / 4.10 Installing the cartridge group
© Copyright 2017 ABB. All rights reserved. HZTL4063_EN Revision A August 2017
4.10 Installing the cartridge group

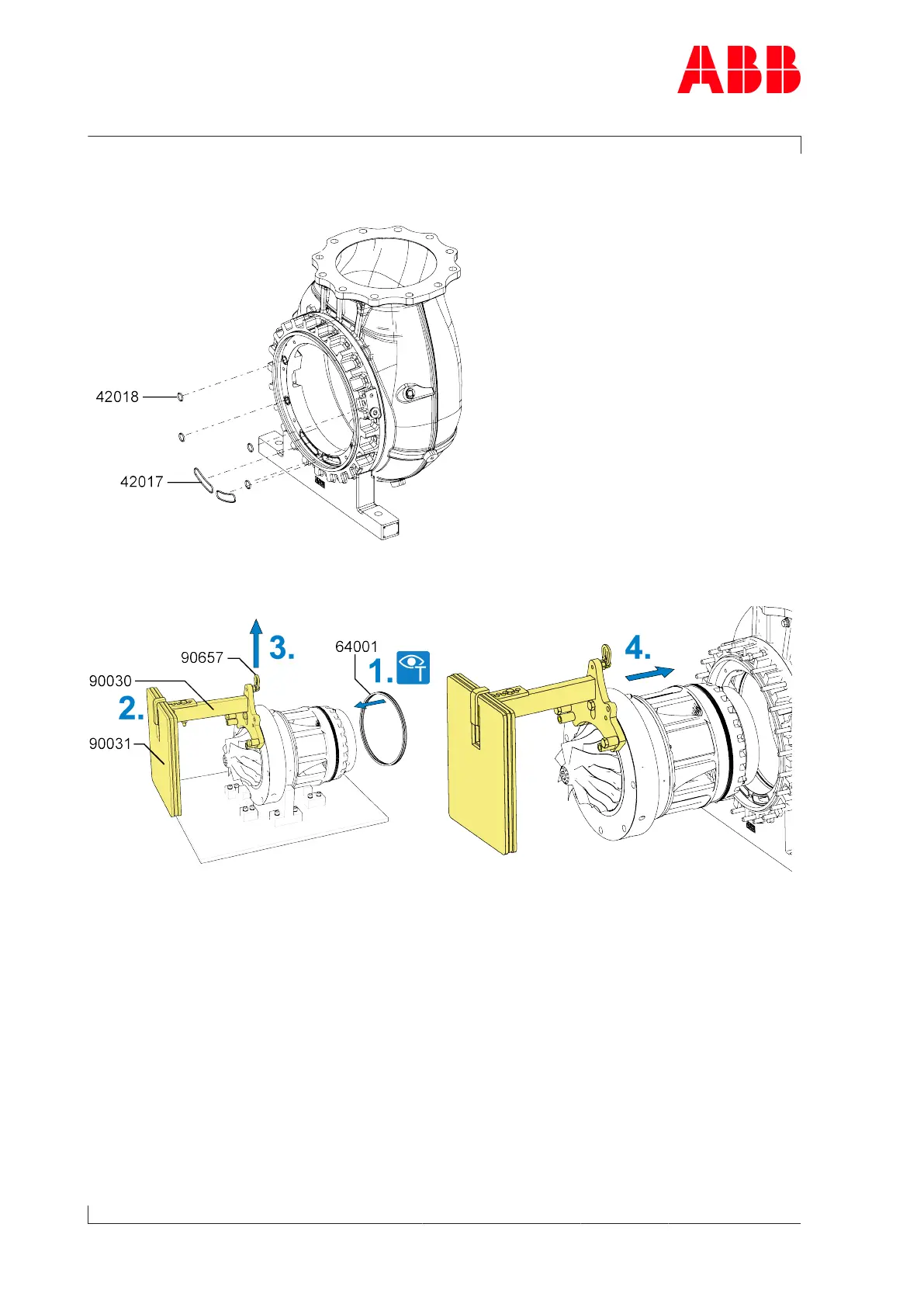

Fig.15: Installing O-rings
u Fit new O-rings(42017 / 42018).
Fig.16: Installing the cartridge group 1
1. Clean slots for lamellar rings(64001) and fit new lamellar rings. Arrange joints so that
they are offset by 180°.
2. Fit bracket(90030) and plates(90031) (Bracket assembly (see Fig.9: Moving out cart-
ridge group 1 →15)).
3. Fit lifting gear to swivel lifting eye (90657).
4. Lift cartridge group and carefully move in.
