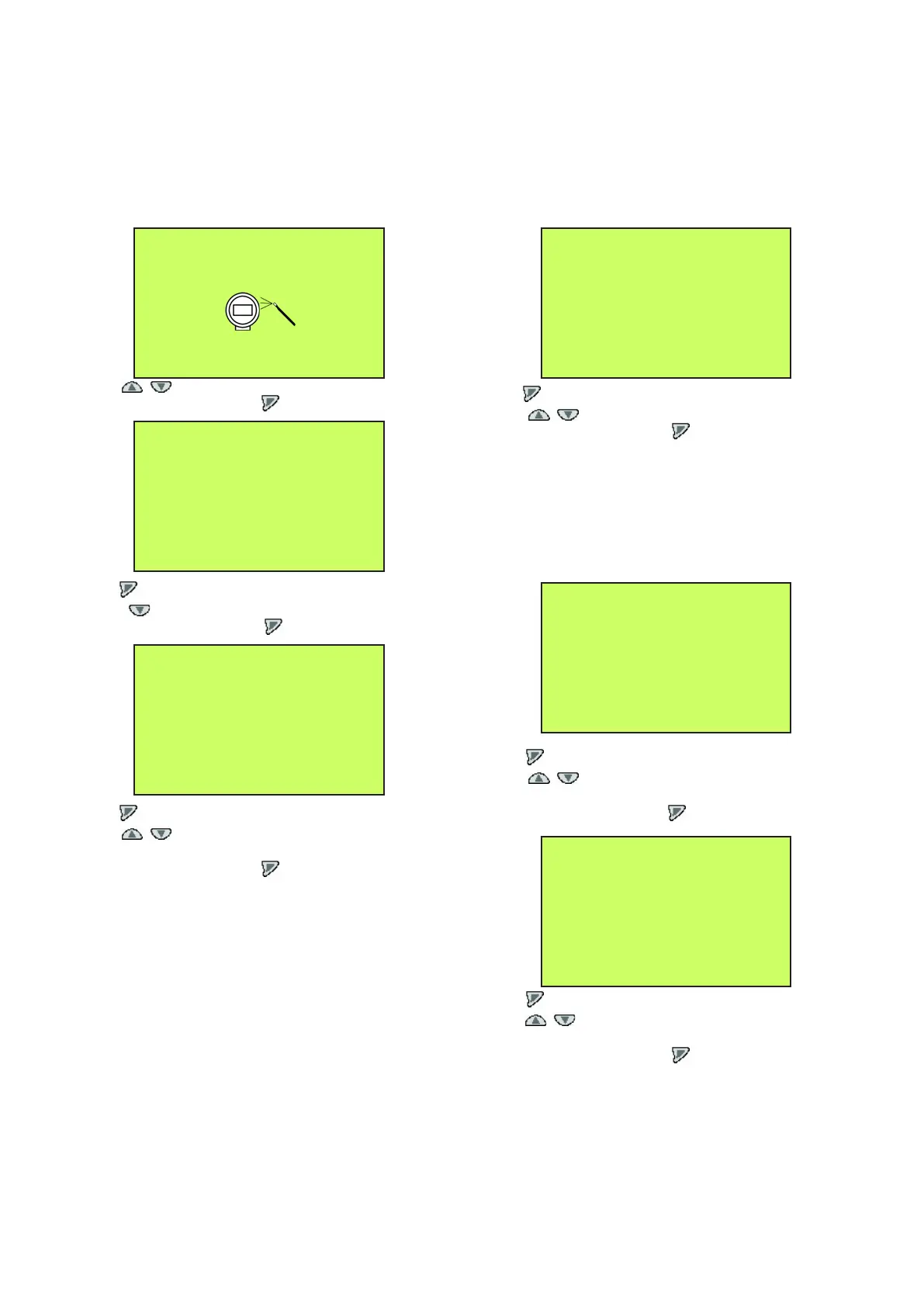

5 Use / to select ‘Easy Setup’.
6 Confirm the selection with .
7 Use to call up the edit mode.
8 Use / to select the desired language.
9 Confirm the selection with .
10 Use to call up the edit mode.
11 Use / to select the desired unit for the volume
flow rate.
12 Confirm the selection with .
Easy Setup
Language
Language
Next Edit
Easy Setup
Unit Volumeflow Qv
ugal/s
Next Edit
Easy Setup
Qv Max 1
25.000 ugal/s
Next Edit
Easy Setup
Unit Vol. Totalizer
ugal/s
Next Edit
Easy Setup
Pulses per Unit
10.000/ft³
Next Edit
Menu
Easy Setup
Exit Select
The device is factory calibrated to the flow range end value
QmaxDN, unless other customer information is available. The
ideal upper range values are those which correspond to a flow
velocity of 6.5 to 10 ft/s (2 to 3 m/s) (0.2 to 0.3 × Q
max
DN)
The adjustable upper range values are listed in the table at
Measuring range table on page 59.
...7 Commissioning
Easy Setup
13 Use to call up the edit mode.
14 Use / to set the desired upper range value.
15 Confirm the selection with .
16 Use to call up the edit mode.
17 Use / to select the desired unit for the volume
totalizer.
18 Confirm the selection with .
19 Use to call up the edit mode.
20 Use / to select the desired pulse per unit for the
pulse output.
21 Confirm the selection with .
