10 OI/FEP610/FEH610-EN Rev. B | ProcessMaster FEP610, HygienicMaster FEH610
3 Product identification
3.1 Name plate
3.1.1 Integral mount design

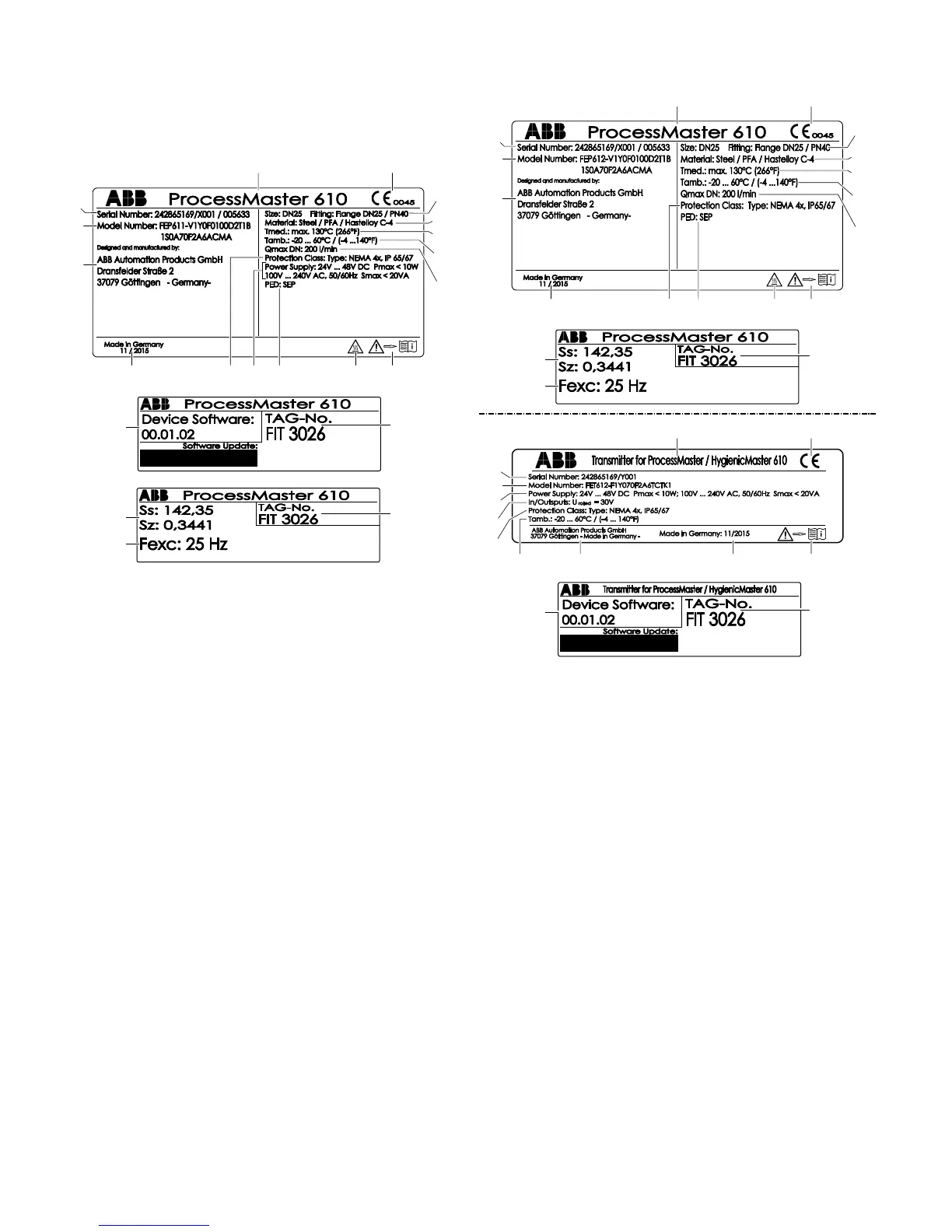

Fig. 4: Name plate integral mount design (example)
1Type designation 2 CE mark 3 Nominal diameter / Process
connection / pressure rating 4 Flange material 5 Medium
temperature range 6 Ambient temperature range 7 Calibration
value Q
max
DN 8 "Follow operating instructions" symbol 9 "Hot
surface" symbol j PED marking k Power supply l IP rating
m Year of manufacture (month / year) n Manufacturer o Order
code p Serial number q TAG number r Device Firmware
version s Sensor calibration data t Excitation frequency
Remote mount design
Fig. 5: Name plate remote mount design (example)
A Flowmeter sensor B Transmitter
1 Type designation 2 CE mark
3 Nominal diameter / Process connection / pressure rating
4 Meter tube material 5 Medium temperature range
6 Ambient temperature range 7 Calibration value Q
max
DN
8 "Follow operating instructions" symbol 9 "Hot surface" symbol
j PED marking k IP rating l Year of manufacture (month / year)
m Manufacturer n Order code o Serial number p Power
supply q Maximum voltage at inputs and outputs r TAG number
s Sensor calibration data t Excitation frequency u Device
Firmware version
