40 OI/FEP610/FEH610-EN Rev. B | ProcessMaster FEP610, HygienicMaster FEH610
7.3.1 Process display

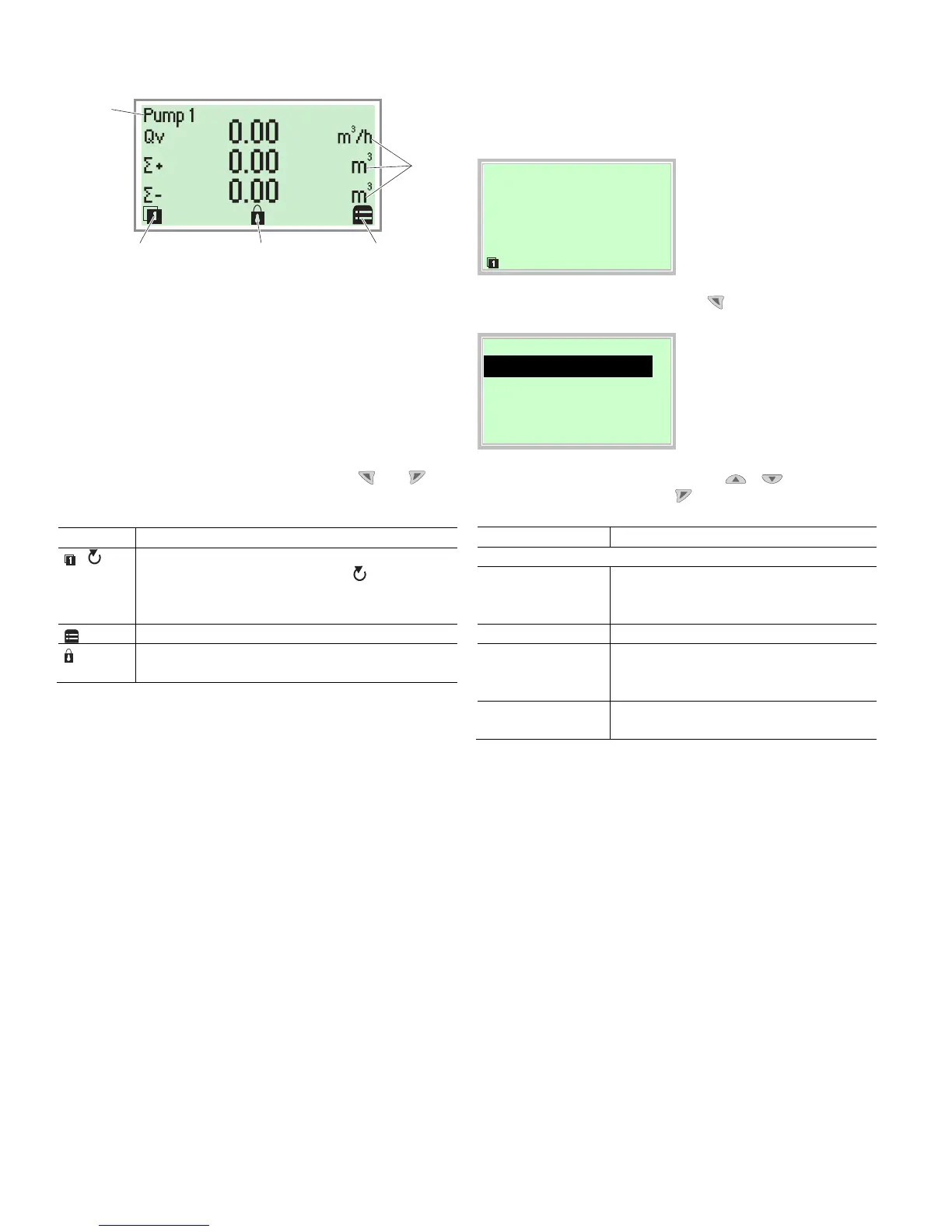

Fig. 50: Process display (example)
1 Measuring point tag 2 Current process values 3 "Button
function" icon 4 "Parameterization protected" icon
The process display appears on the LCD display when the
device is switched on. It shows information about the device
and current process values.
The way in which the current process values are shown can
be adjusted on the configuration level.
The symbols at the bottom of the process display are used to
indicate the functions of the operating buttons and , in
addition to other information.
Symbol Description
/
Call up information level.
When Autoscroll mode is activated, the - icon appears
here and the operator pages are automatically displayed
one after the other.
Call up configuration level.
The device is protected against changes of the parameter
settings.
7.3.2 Switching to the information level (operator menu)
On the information level, the operator menu can be used to
display diagnostic information and choose which operator
pages to display.
Process display
1. Open the Operator Menu using .
Operator Menu
Diagnostics
Operator Page 1
Operator Page 2
Back Select
2. Select the desired submenu using / .
3. Confirm the selection with .
Menu Description
… / Operator Menu
Diagnostics Selection of sub-menu "Diagnostics"; see also
chapter "Error messages on the LCD display"
on page 41.
Operator Page 1 ... n Selection of operator page to be displayed.
Autoscroll When Autoscroll is activated, automatic
switching of the operator pages is initiated on
the process screen.
Signals View Selection of submenu "Signals View" (only for
service purposes).
G11558
1
43
2
3
