32 OI/FEP610/FEH610-EN Rev. B | ProcessMaster FEP610, HygienicMaster FEH610
6.3 Checks prior to commissioning
The following points must be checked before commissioning
the device:
— The wiring must have been completed as described in the
chapter "Electrical connections" on page 22.
— The correct grounding of the sensor.
— The ambient conditions must meet the requirements set
out in the technical data.
— The power supply must meet the requirements set out on
the identification plate.
Remote Sensor - Checking for the correct sensor to
transmitter assignment

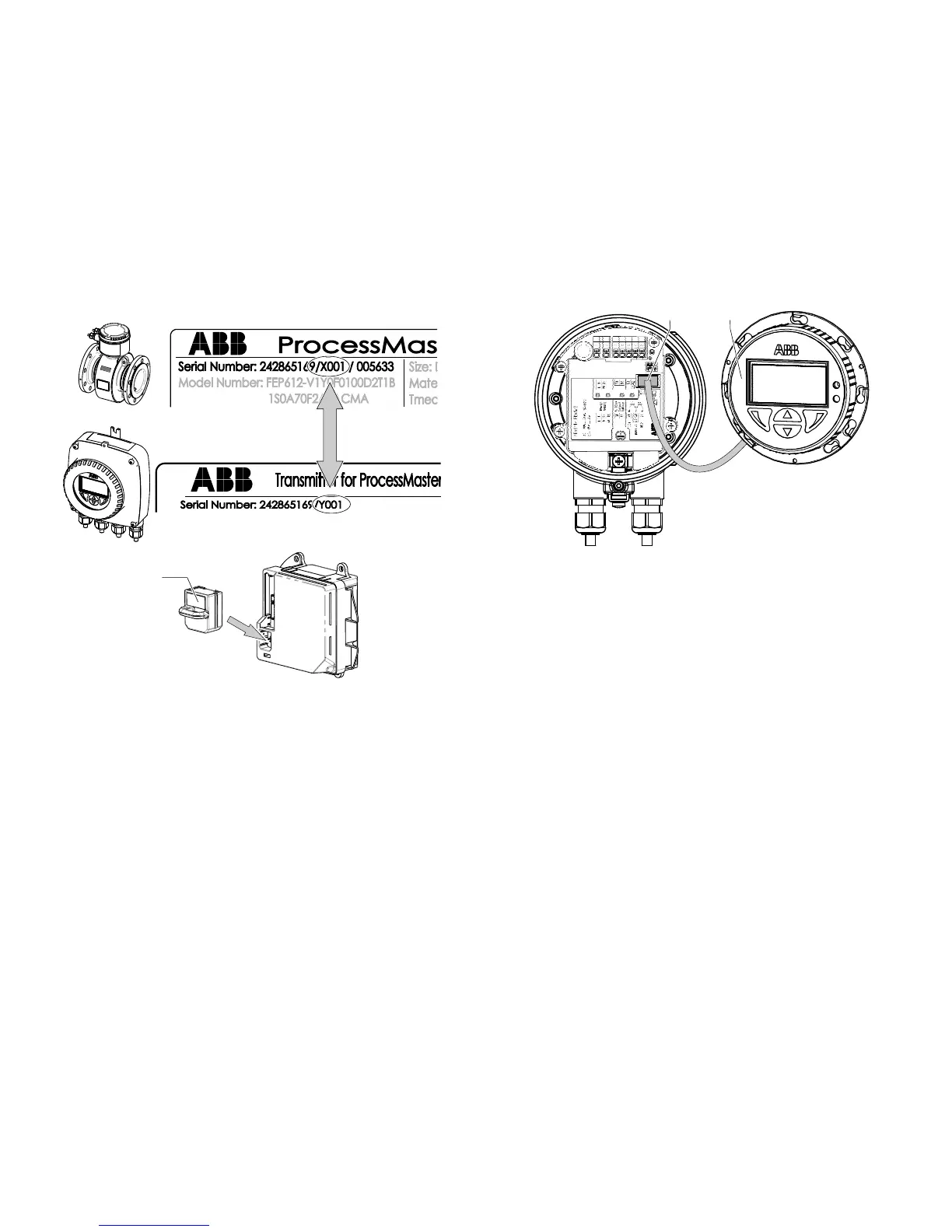

Fig. 45: Sensor to transmitter assignment
1 SensorMemory
The SensorMemory is a pluggable data storage device located
on the rear side of the transmitter cartridge.
The SensorMemory is labeled with an order number and an
end number.
The end number is shown on the nameplate of the
corresponding flowmeter sensor.
These numbers must be identical.
6.4 Parameterization of the device
The ProcessMaster FEP610, HygienicMaster FEH610 can be
commissioned and operated via the integrated LCD indicator
(option, see chapter "Parameterization via the "Easy Setup"
menu function" on page 34).
Alternatively, the ProcessMaster FEP610, HygienicMaster
FEH610 can also be commissioned and operated via ABB
Asset Vision Basic (FEx61x DTM).
Flowmeter without display operated through a hot
pluggable display
Fig. 46: Optional LCD display
1 Connector plug for LCD display 2 LCD display
The “non display” version of the device can be parameterized
using a display which is available as an accessory to the
flowmeter.
G12035
1
G12020
1 2
