ProcessMaster FEP610, HygienicMaster FEH610 | OI/FEP610/FEH610-EN Rev. B 7
2.1.2 HygienicMaster
Integral mount design Remote mount design

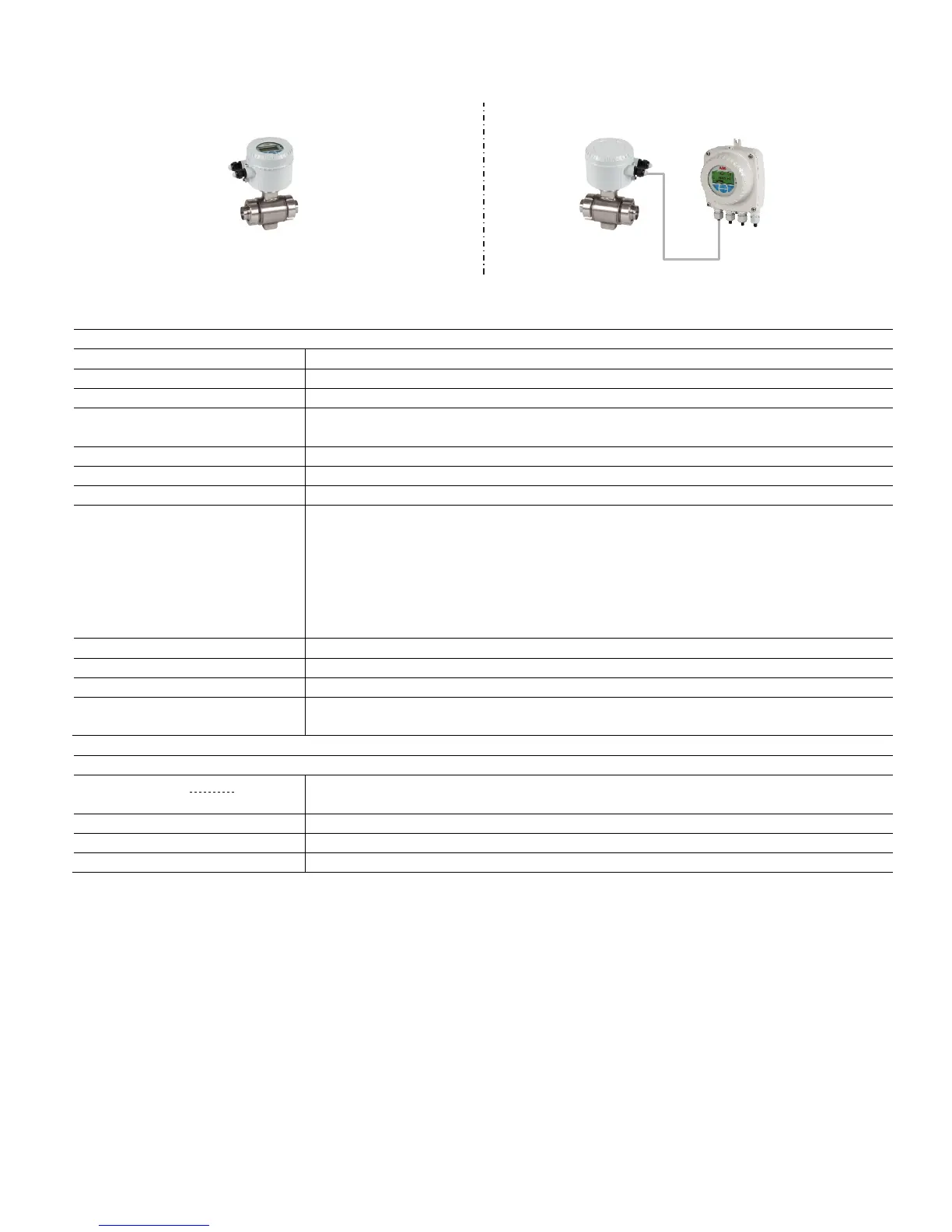

Fig. 2: Designs
1 Flowmeter sensor 2 Remote transmitter
Flowmeter sensor
Model HygienicMaster FEH611, FEH612
Housing Integral mount design, remote mount design
Measuring accuracy for liquids
0.5 % of measured value
Permissible measuring medium
temperature T
medium
-25 ... 130 °C (-13 ... 266 °F)
Minimum conductivity
> 20 µS/cm (20 µS/cm for demineralized water)
Nominal pressure
PN 10 … 40, ASME CL 150, 300, JIS 10K
Nominal diameter
DN 3 ... 100 (1/10 “ ... 4 “)
Process connection
Wafer type design:
Flange in acc. with DIN, ASME or JIS:
Threaded pipe connection in acc. with DIN 11851
1)
:
Weld stubs
1)
:
Tri-Clamp in acc. with DIN 32676
1)
:
Tri-Clamp in acc. with ASME BPE
1)
:
External thread in acc. with ISO 228 / DIN 2999:
DN 3 ... 100 (1/10 ... 4“)
DN 3 ... 100 (1/10 ... 4“), PN 10 ... 40
DN 3 ... 100 (1/10 ... 4“), PN 10 ... 40
DN 3 ... 100 (1/10 ... 4“), PN 10 ... 40
DN 3 ... 100 (1/10 ... 4“), PN 10 ... 16
DN 3 ... 100 (1/10 ... 4“), PN 10
DN 3 ... 25 (1/10 ... 1“), PN 16
Process connection material Stainless steel
Liner material PFA (vakuum tight)
Electrode material CrNi steel 1.4571 (AISI 316Ti), 1.4539 [904L], Hastelloy B, Hastelloy C, platinum-iridium, tantalum, titanium
IP rating
Integral mount design: IP 65 / IP 67
Remote mount design: IP 65 / IP 67 / IP 68 (sensor only)
Approvals
Pressure Equipment Directive
2014/68/EU
Conformity assessment in accordance with category III, fluid group 1
CRN (Canadian Reg.Number) On request
Hygienic design approvals
3A, FDA-approved materials
Further approvals
At www.abb.com/flow or on request.
1) 3A approved
G12002
2
1
1
FEH611
FEH612 FET612
