IEC05000749 V1 EN

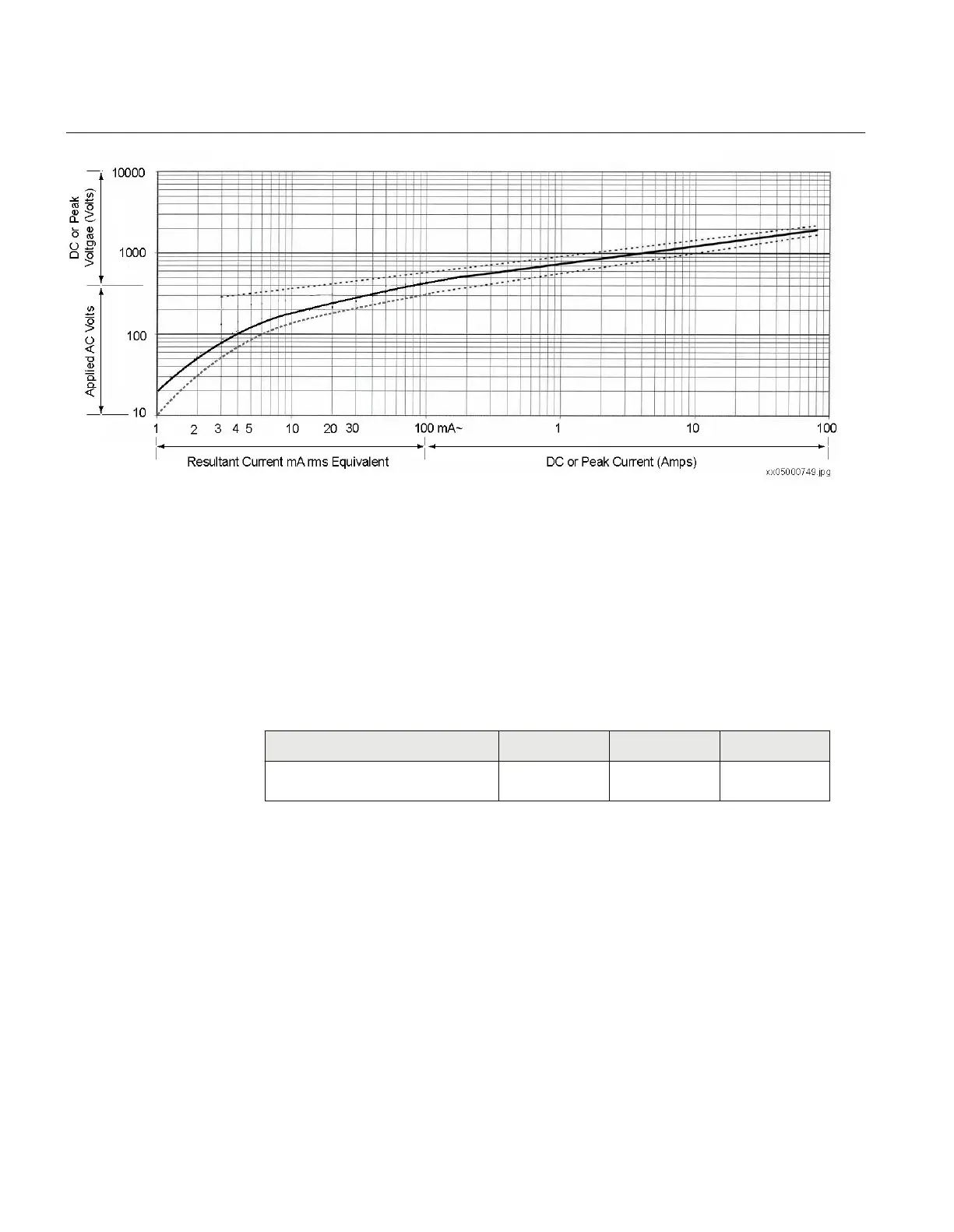

Figure 55: Current voltage characteristics for the non-linear resistors, in the range 10-200 V, the average range
of current is: 0.01–10 mA
7.2 Additional security logic for differential protection
LDRGFC (11)
7.2.1 Identification
Function description
IEC 61850
identification
IEC 60617
identification
ANSI/IEEE C37.2
device number
Additional security logic for differential
protection
LDRGFC - 11
7.2.2 Application
Additional security logic for differential protection LDRGFC (11) can help the security of
the protection especially when the communication system is in abnormal status or for
example when there is unspecified asymmetry in the communication link. It reduces the
probability for mal-operation of the protection. LDRGFC (11) is more sensitive than the
main protection logic to always release operation for all faults detected by the differential
function. LDRGFC (11) consists of four sub functions:
Section 7 1MRK 506 369-UUS -
Differential protection
152 Line distance protection REL670 2.2 ANSI
Application manual
