Control Protection Control ProtectionControl and protection
GOOSE
en05000734.vsd
Station HSI
MicroSCADA
Gateway
IED
A
IED
A
IED
A
IED
A
IED
A
IEC05000734 V1 EN

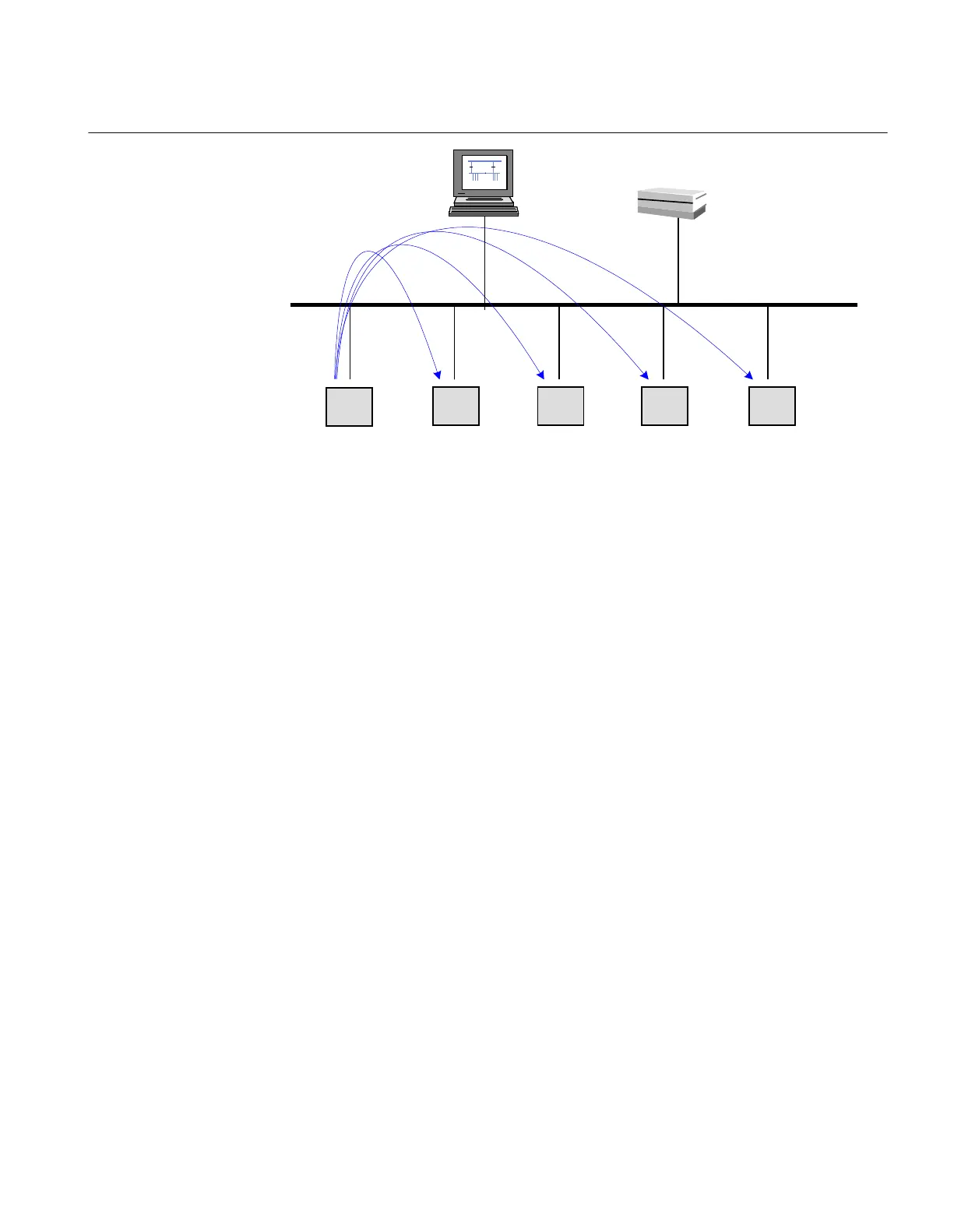

Figure 406: Example of a broadcasted GOOSE message
21.2.2 Setting guidelines
There are two settings related to the IEC 61850–8–1 protocol:
Operation: User can set IEC 61850 communication to Enabled or Disabled.
GOOSEPortEd1: Selection of the Ethernet link where GOOSE traffic shall be sent and
received. This is only valid for Edition 1 and can be ignored if Edition 2 is used. For
Edition 2, the Ethernet link selection is done with the Ethernet Configuration Tool (ECT)
in PCM600.
21.2.3 Horizontal communication via GOOSE
21.2.3.1 Sending data
In addition to the data object and data attributes of the logical nodes, it is possible to send
the outputs of the function blocks using the generic communication blocks. The outputs
of this function can be set in a dataset and be sent in a GOOSE Control Block to other
subscriber IEDs. There are different function blocks for different type of sending data.
Generic communication function for Single Point indication SPGAPC,
SP16GAPC
1MRK 506 369-UUS - Section 21
Station communication
Line distance protection REL670 2.2 ANSI 865
Application manual
