A070817 V2 EN

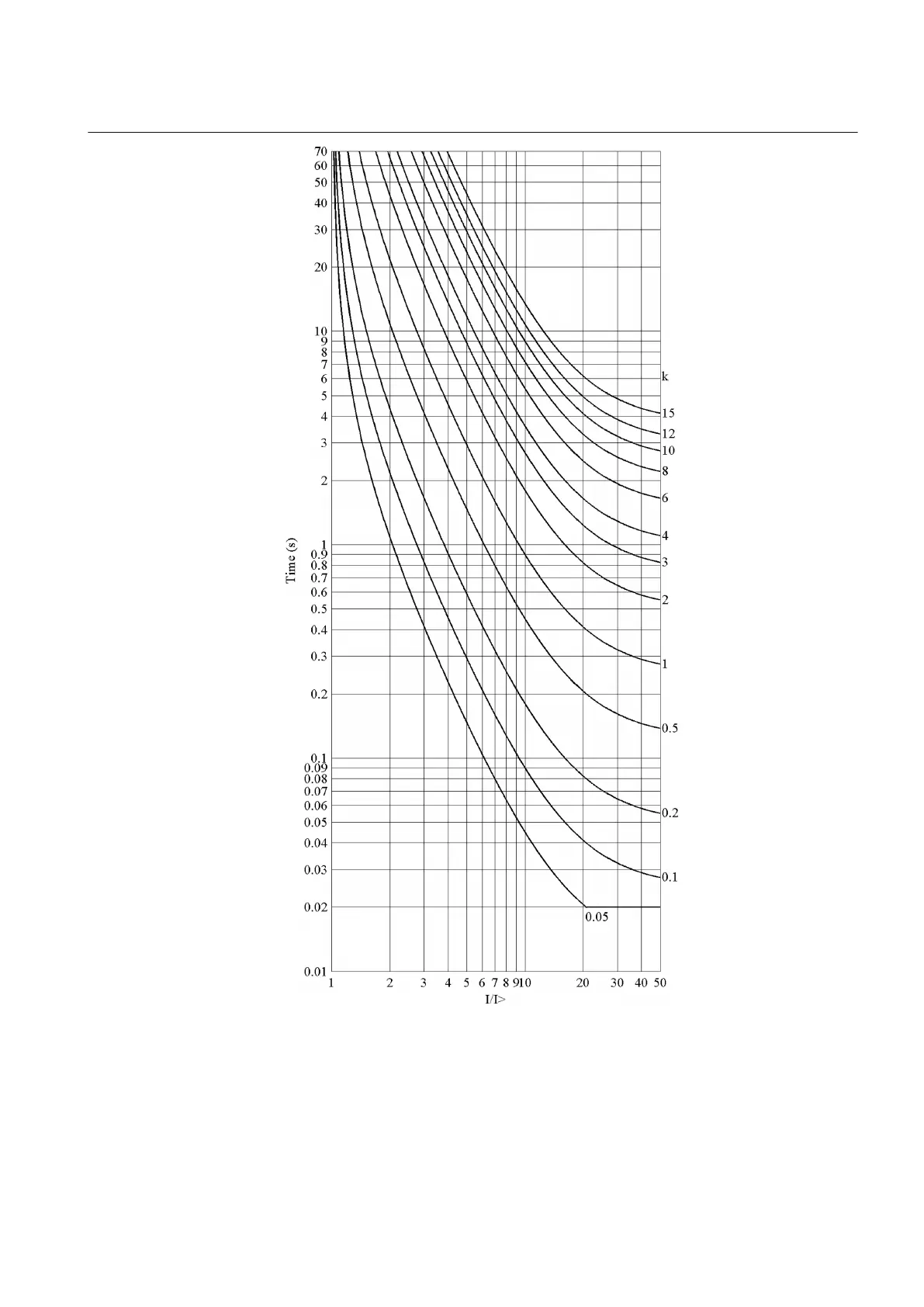

Figure 276: ANSI Long time extremely inverse time characteristics

1MRK 504 135-UEN A Section 21

Time inverse characteristics

639

Technical manual
