10 1VLG5 00007 E

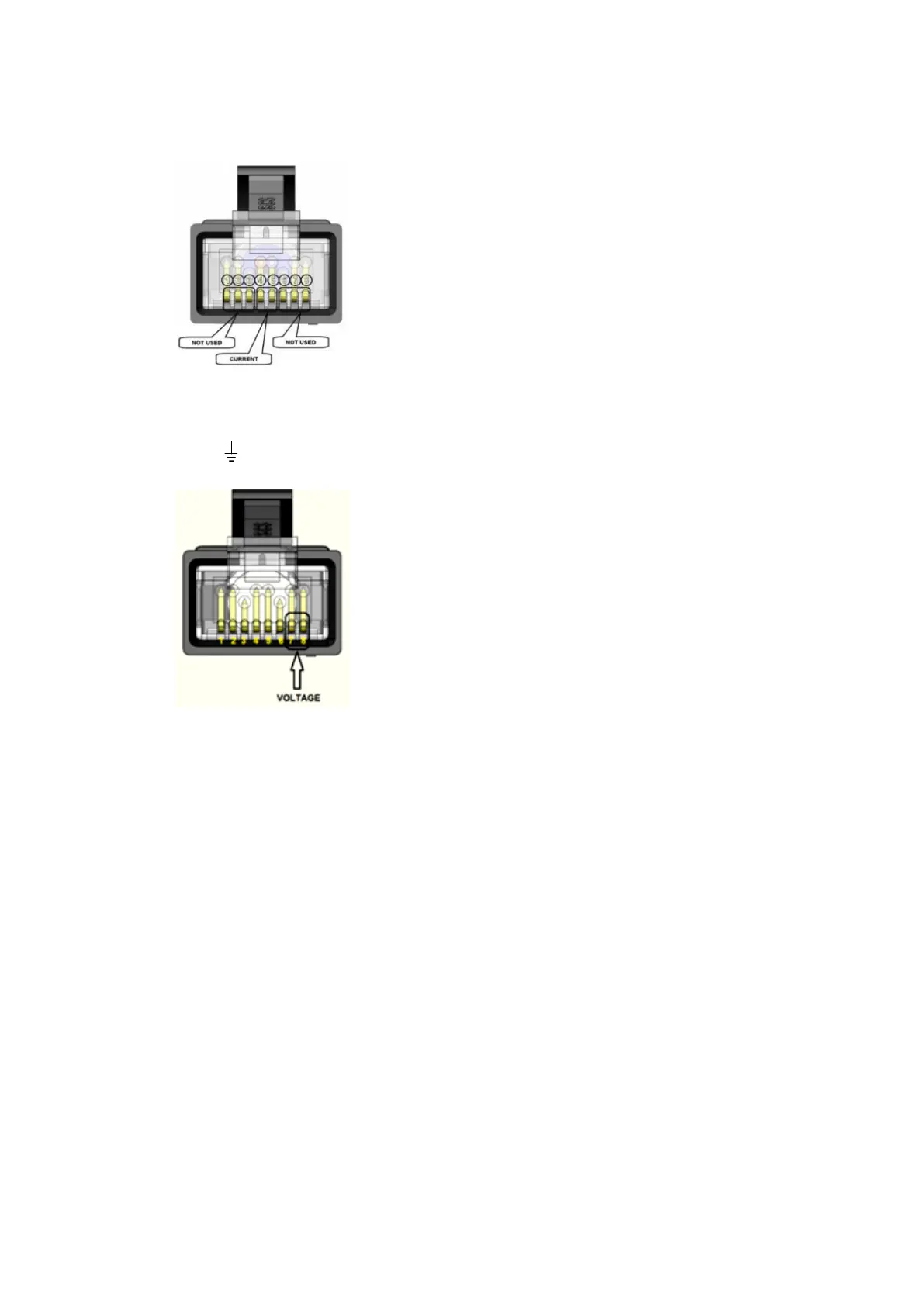

Current sensor wires are connected according to the following assignment:

PIN 4 – S1, PIN 5 – S2, other PINs remain unused.

Figure 8: Connector pins assignment of a current sensor plug

Voltage sensor wires are connected according to the following assignment: PIN 7 – a,

PIN 8 - , other PINs remain unused.

Figure 9: Connector pins assignment of a voltage sensor plug
