28 1VLG5 00007 E

Primary, Nominal current and Rated secondary values are entered via parameter setting in

PCM600 (IED Configuration / Configuration / Analog inputs/Current (3I, CT))

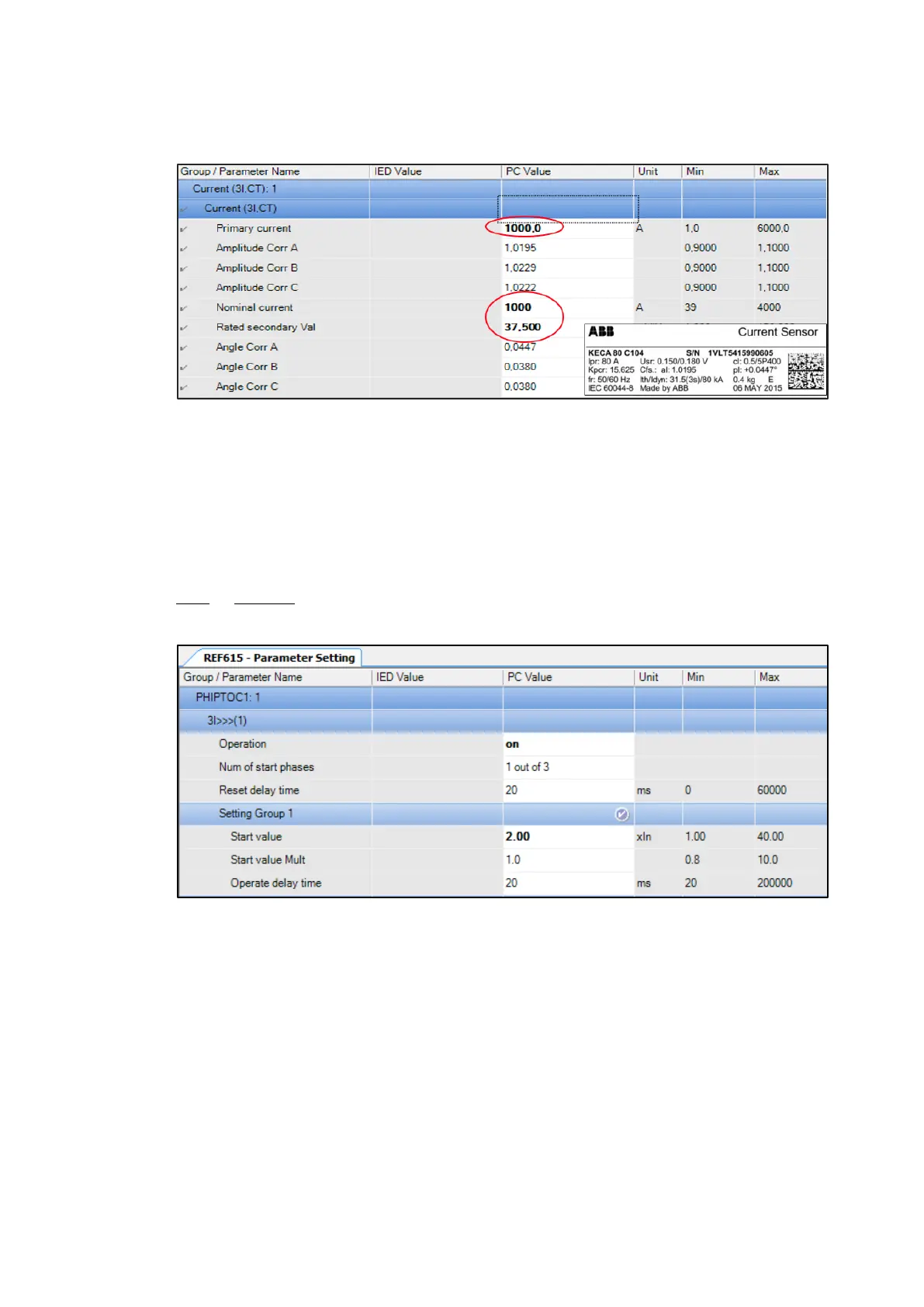

Figure 32: Example of setting values for current sensor in PCM600

Unless otherwise specified, the

Nominal Current

setting should always be the same as the

Primary Current

setting which is a reference value for protection functions.

Each setting parameter of current protection functions is divided by application nominal cur-

rent I

Threshold for

PHIPTOC1

Start value tripping at 2 000 A is:

nTRIP

2 000 A

1 000 A

= 2

Figure 33: Example of parameter setting for PHIPTOC1 Start value in PCM600
