UNIGEAR DIGITAL SWITCHGEAR TYPE OVERVIEW

1VLG5 00007 E 23

2.4 Switchgear type overview

UniGear Digital is available for the following switchgear types:

– UniGear ZS1

– UniGear 550

– UniGear 500R

– UniGear MCC

Table 3: Overview of UniGear Digital in UniGear switchgear family

Switchgear

type

Busbar

arrangement

UniGear

Digital

Voltage level

Rated feeder

current

Rated short-

circuit

current

UniGear ZS1

Single

busbar

Yes

Up to 24 kV

Up to 4 000A

Up to 50kA/

3 s

Double

busbar

Up to 24 kV

Up to 4 000A

Up to 31.5kA/

3 s

Back to back

Up to 24 kV

Up to 4 000A

Up to 50kA /

3 s

UniGear 550

Single

busbar

Yes

Up to 12 kV

Up to 1 250A

Up to 31.5kA/

3 s

UniGear

500R (IEC)

Single

busbar

Yes

Up to 17.5 kV

Up to 2 000A

Up to 31.5kA/

3 s

UniGear MCC

Single

busbar

Yes

Up to 12 kV

Up to 400A

Up to 50 kA/

3 s

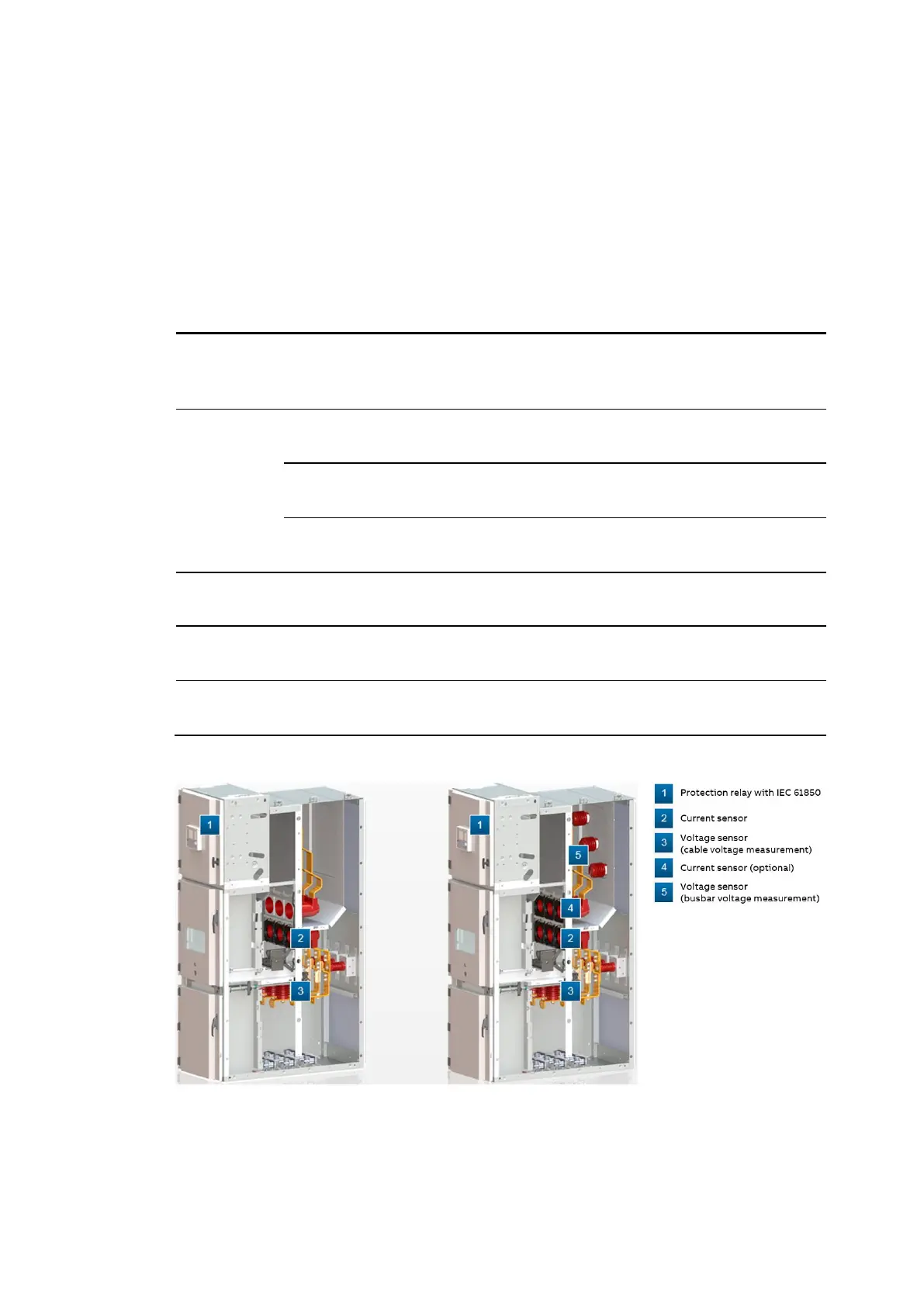

Figure 24: UniGear ZS1 Digital (17.5 kV, 4 000 A, 50 kA)
