ENGINEERING DO CUMENTAT IO N

1VLG5 00007 E 33

3.2 Documentation

Network overview diagram

The diagram provides an overview of the substation network (interconnections between the

protection relay and Ethernet switch, network architectures, and device location – Panel No.

…)

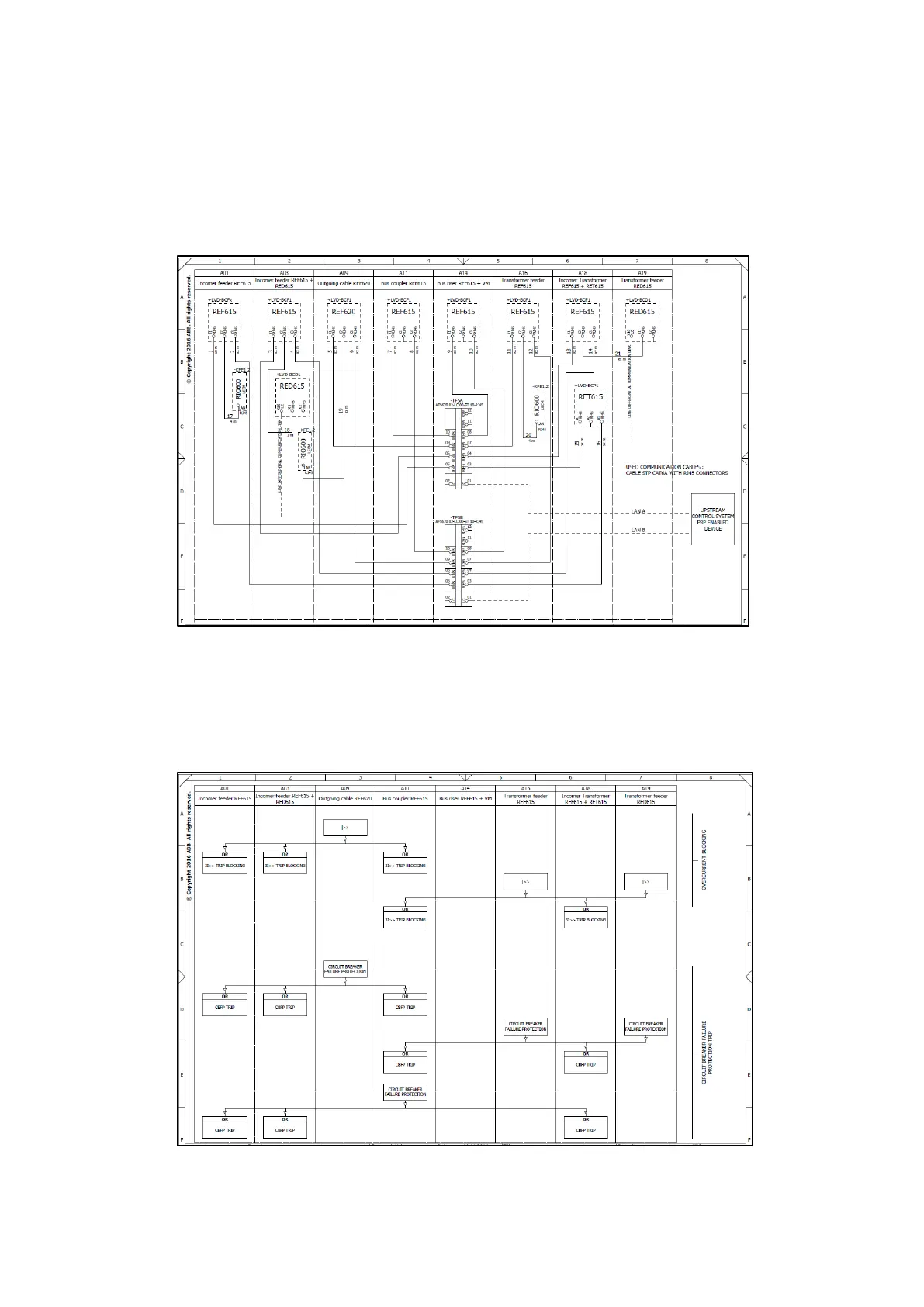

Figure 41: Example of a Network Overview Diagram

Logic diagrams for interconnection between panels

The GOOSE Logic diagrams show the principle of the application used and are project

oriented.

Figure 42: Example of a logic diagram for interconnection between panels

Main Page

Table of Contents5
