60 1VLG5 00007 E

3.5.3 Topologies

SINGLE network using Rapid Spanning Tree Protocol (RSTP) / Fast Media Redundancy

Protocol (E-MRP)

The single network topology is the most common one, protection relays are connected to

managed Ethernet switch via single connection. The managed Ethernet switches form a

physical loop (ring).

RSTP ring offer redundancy mechanism against link between switches failures, but not

against protection relay link or switch failure. Rapid Spanning Tree protocol always blocks

one path to avoid duplicates. Moreover, the RSTP ring cannot guarantee a zero or near-zero

frame loss upon network failure occurrence. It is supported by AFS and RUGGEDCOM family.

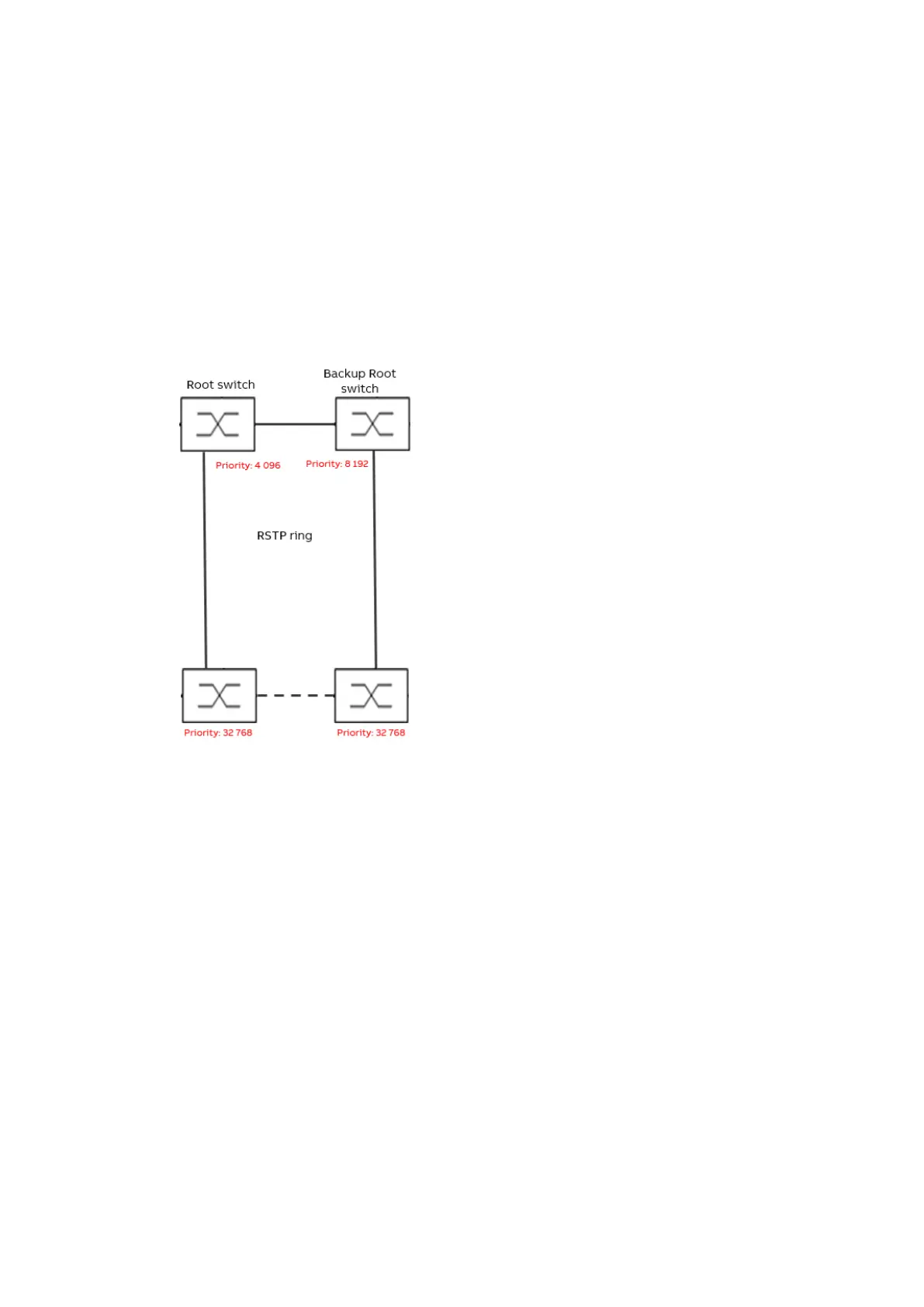

Figure 81: RSTP ring redundant structure
