ABB UniGear Digital - Figure 12: Functionality Overview of REM615 Standard Configuration D

112 pages

Save Page as PDF

To Next Page

To Previous Page

14 1VLG5 00007 E

Motor protection and control REM615

The REM615 is a dedicated motor protection relay perfectly aligned for protection, control,

measurement and supervision of asynchronous motors in manufacturing and process

industry. The REM615 offers all the functionality needed to manage motor starts and normal

operation, including also protection and fault clearance in drive and network disturbance

situations. The REM615 can send (1 instance) and / or receive (1 instance) voltage over

the IEC 61850-9-2LE.

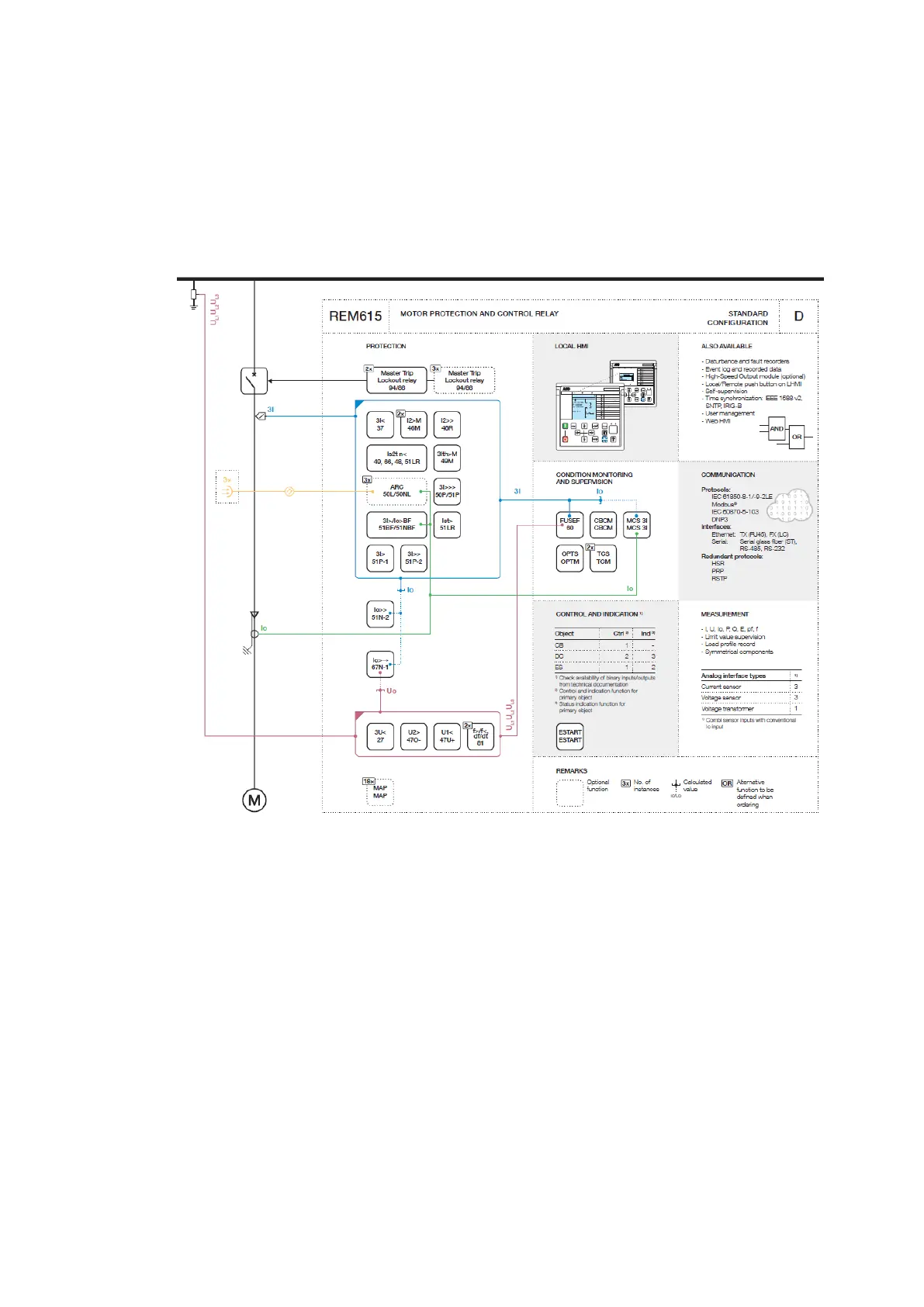

Figure 12: Functionality overview of REM615 standard configuration D
