3.5.10.4 Redundancy Settings RSTP <Conditional>

Redundancy / Spanning Tree / Global

Operation = ON

Protocol version = RSTP

Protocol Configuration / Information

– Priority

• 4 096 for Root (Master) Switch

• 8 192 for Backup Root Switch

• 32 768 for all Bay (Slave) Switches

– Hello Time = 2 s

– Forward Delay = 15 s

– Max Age = 20 s

– MRP Compatibility = disabled; enabled if MRP ring ID is used together with RSTP

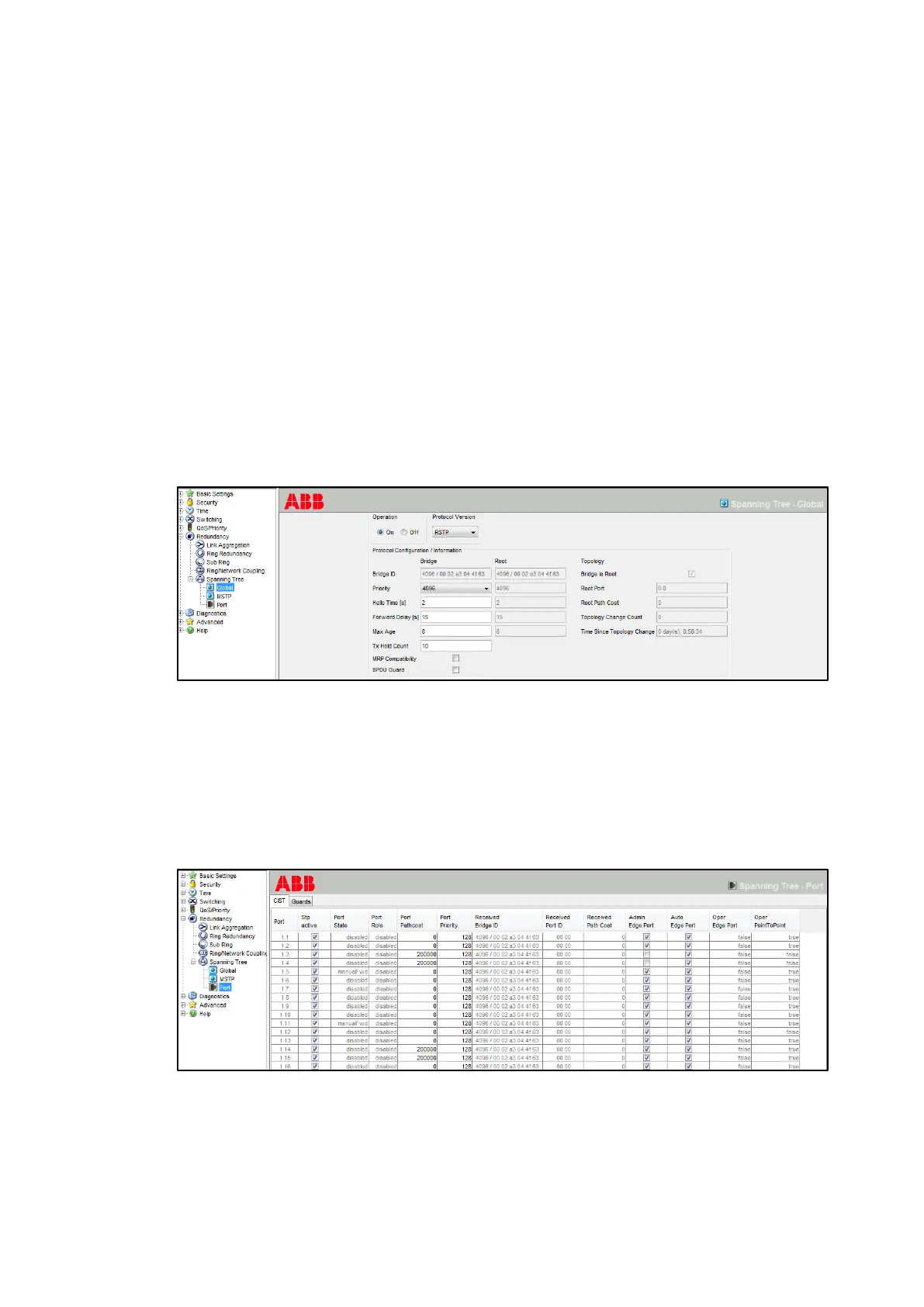

Figure 110: Spanning Tree Global dialog

Redundancy / Spanning Tree / Port

STP active = enabled for all ports

AdminEdge Port = enabled for all ports except the ring ones

AutoEdge Port = enabled for all ports

Figure 111: Spanning Tree Ports dialog
