ABB UniGear Digital - Figure 60: Configuring the SMV Senders and Receivers

To Next Page

To Previous Page

ENGINEERING PRO CES S BUS (SMV)

1VLG5 00007 E 45

Step 3 / 4

The connection between SMV sender and receiver is handled using the IEC 61850 Configura-

tion tool. Protection relay can receive voltage only from one another relay via IEC 61850-9-2LE.

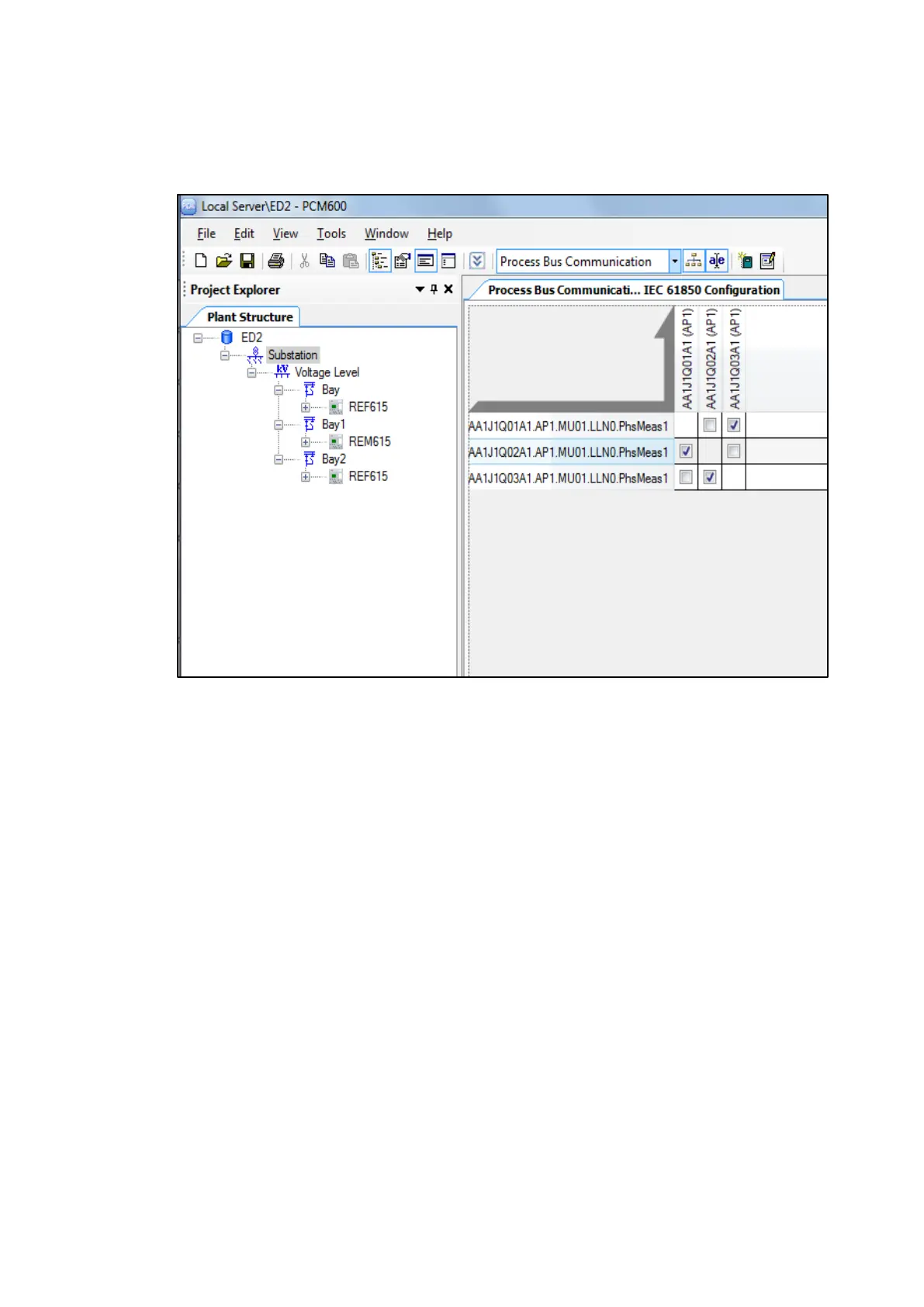

Figure 60: Configuring the SMV senders and receivers
