Switching / VLAN / Global
Configuration
– VLAN 0 Transparent Mode / VLAN Unaware Mode = disabled
– GVRP active = disabled (enabled to synchronize VLAN information between Ethernet
switches)
Learning/Mode/Independent VLAN = enabled

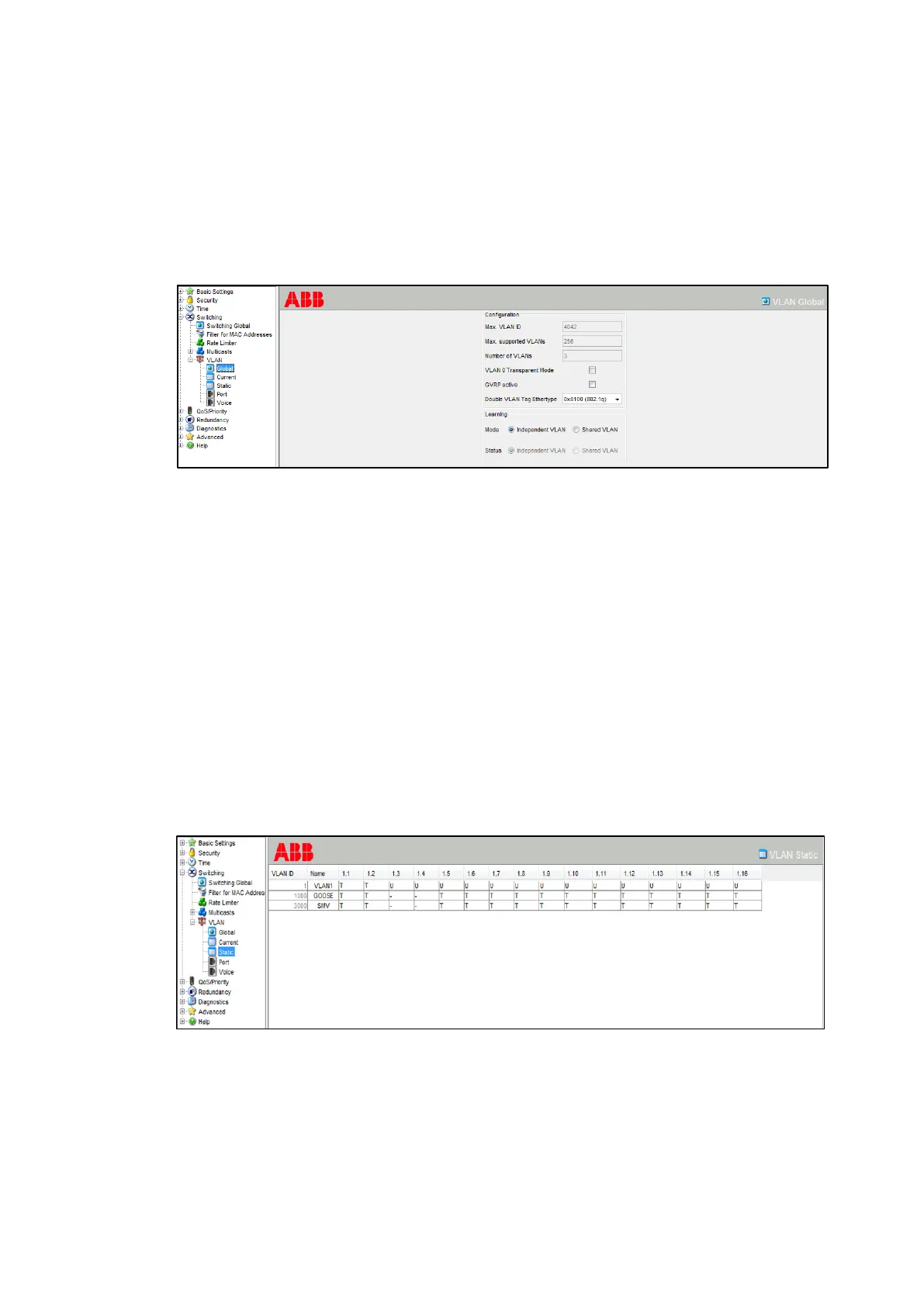

Figure 107: VLAN Global dialog in AFS67x
Switching / VLAN / Static
This item is used to configure outgoing packets from the switch. New VLAN ID Entries as per
the protection relays engineering must be created.
VLAN ID
– GOOSE ranging from 1 000 to 1 511
– SMV ranging from 3 000 to 3 511
Name = for information purpose on the switch only
Untagged ports = U, All ports in VLAN ID 1 except ring, PRP, HSR ports. It is possible to con-
nect engineering tools, Internet Explorer or other features via this untagged VLAN
Tagged ports = T, all ports in the other VLAN IDs (ring, PRP, HSR, GOOSE and SMV receiver)
= -, Port is not member of VLAN and does not transmit data packets of VLAN
Figure 108: VLAN Static dialog
