16 1VLG5 00007 E

Feeder protection and control REF620

The REF620 is a dedicated feeder management relay perfectly aligned for the protection, con-

trol, measurement and supervision of utility and industrial power distribution systems, in-

cluding radial, looped and meshed networks, with or without distributed power generation.

REF620 can also be used to protect feeders including motors or capacitor banks. Addition-

ally, REF620 offers functionality for interconnection protection used with distributed genera-

tion like wind or solar power connection to utility grid. The REF620 can send (1 instance) and

/ or receive (1 instance) voltage over the IEC 61850-9-2LE and to synchrocheck with

IEC 61850-9-2 LE.

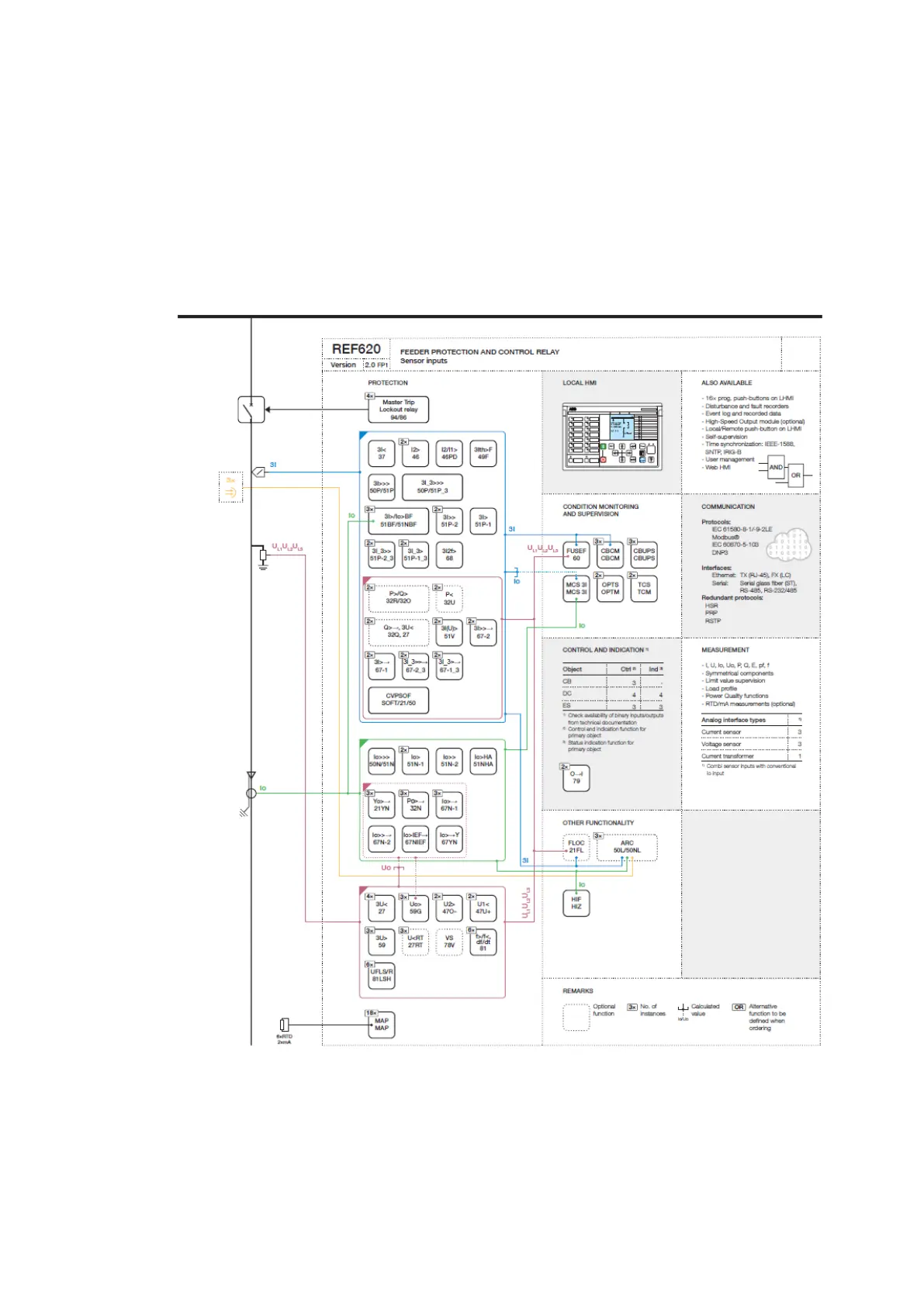

Figure 14: Functionality overview of REF620 standard configuration B
