P5271/P5290/P5390W/P5271i Condential
2-3
Note: - When you disassemble the Top/Lamp
Cover, take care the FPC cable which
connect Main Board and Keypad Board
Module, please unplug the connector
(as green square) from Keypad Board
Module.
3. Disassemble the Top/Lamp Cover
Module.
2-3 Disassemble Top/Lamp
Cover Module

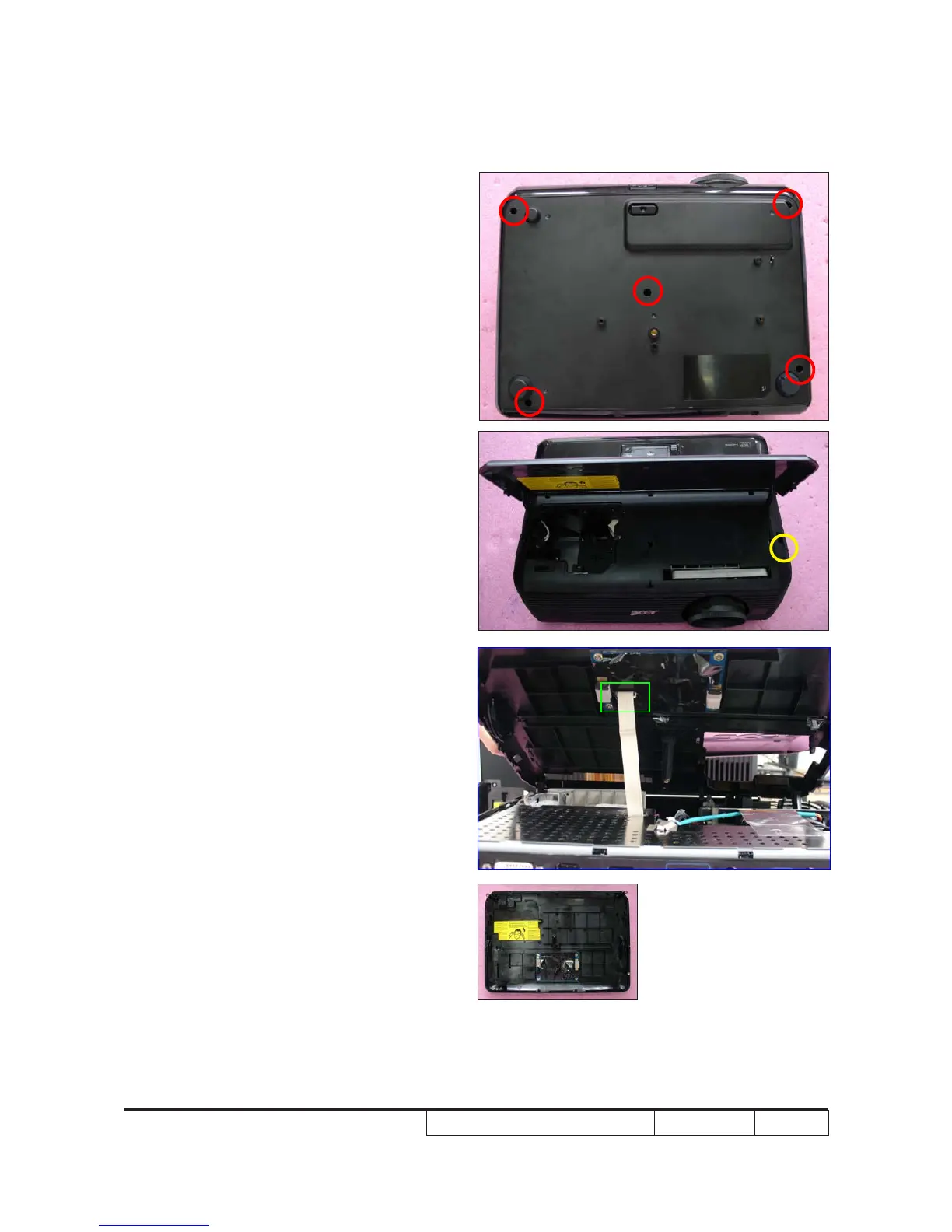

1. Unscrew 5 screws (as red circle) from the
Bottom Cover.
2. Unscrew 1 screw (as yellow circle)
