Acer P5271 - Disassemble Latch and Spring; Disassemble Bottom Shielding

P5271/P5290/P5390W/P5271i Condential
2-16
2-14 Disassemble Latch and
Spring

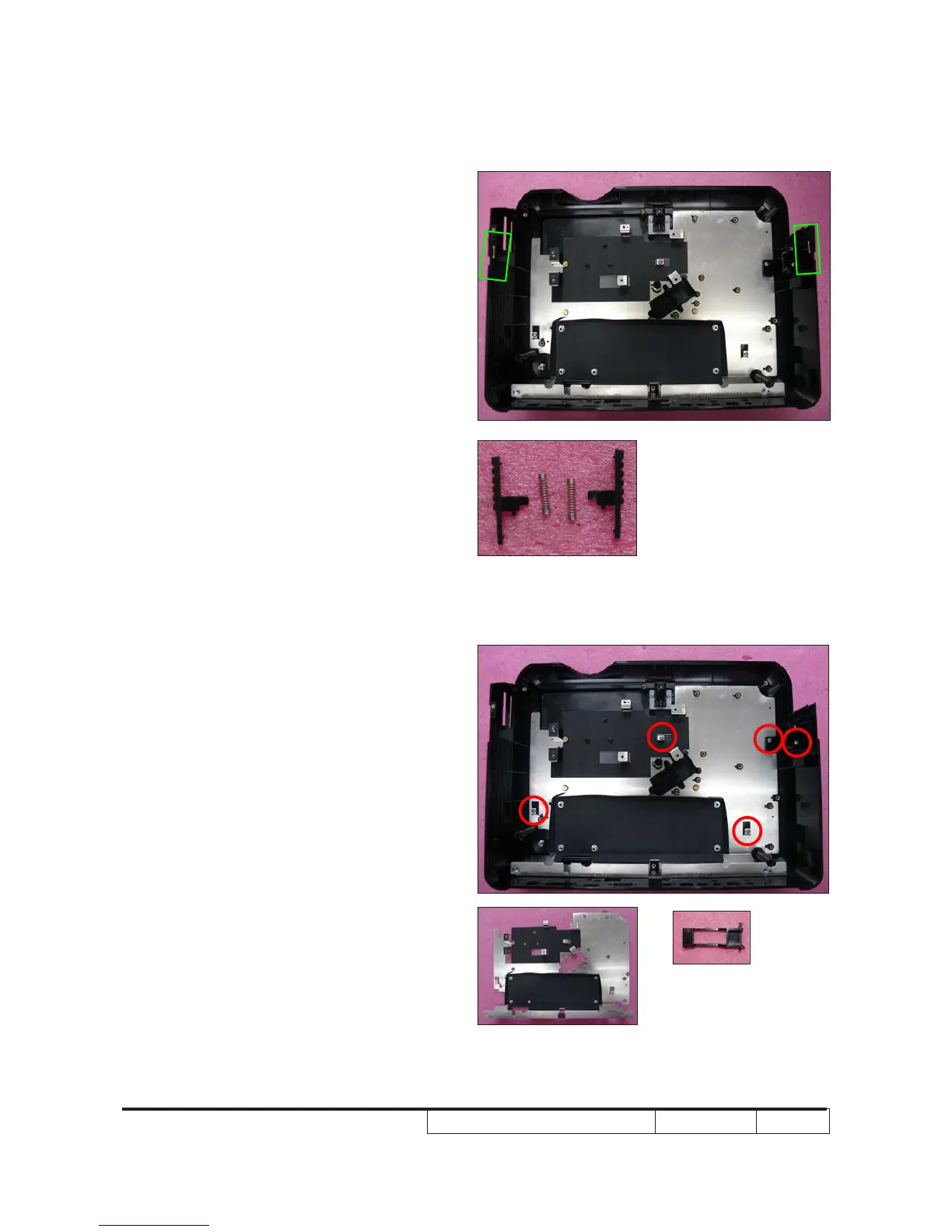

1. Take out 2 springs on each side to
disassemble 2 latches (as green square).
2-15 Disassemble Bottom
Shielding
1. Unscrew 5 screws (as red cricle) to
disassemble Bottom Shielding and Lamp
Connector Holder.
Latches and Springs
Lamp Connector Holder
