Acer P5271 - Setup Procedure (VGA in 1 & VGA in 2)

P5290/P5271/P5390W/P5271i
Condential
6-3
6-3 Setup Procedure
(VGA IN 1 & VGA IN 2)

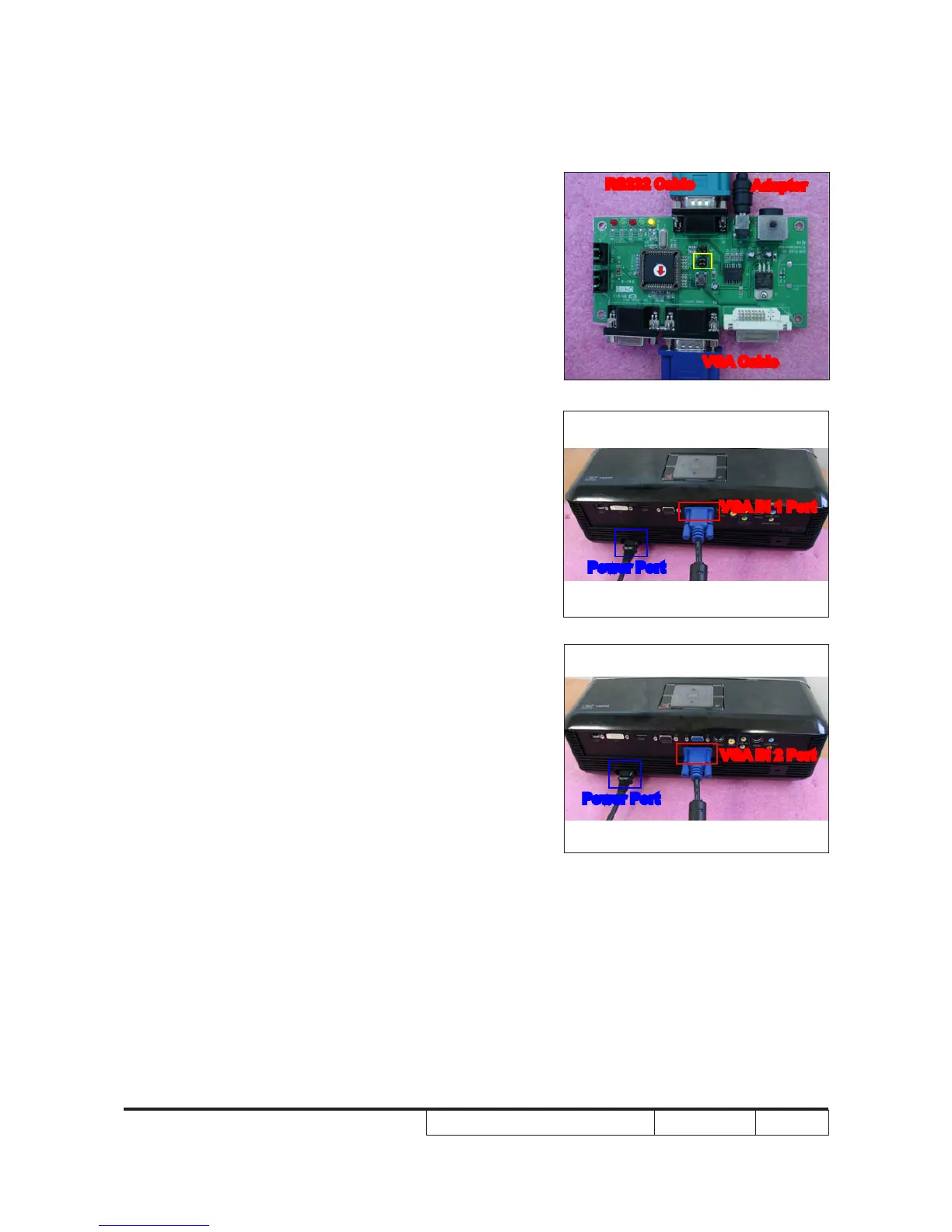

1. Connect all ports
(1) Connect P1 of xture with COM Port of
PC/Laptop by RS232 Cable.
(2) Connect P2 of xture with VGA IN 1 /
VGA IN 2 Port of projector by VGA Cable.
(3) Plug Power Adapter to JP2 of xture.
(4) Plug Power Cord to projector.
Note: - You must conrm that the JP3 is closed in
all procedure.
- The EDID Upgrade procedure of VGA IN 2
port is the same as VGA IN 1 port, we take
VGA IN 1 port as an example here.
Power Port
VGA IN 2 Port
JP3
P2
RS232 Cable
Adapter
JP2
P1
VGA Cable
VGA IN 1 Port
Power Port
