Acer P5271 - Disassemble Engine Module; Disassemble DMD Chip and DMD Board

P5271/P5290/P5390W/P5271i Condential
2-12

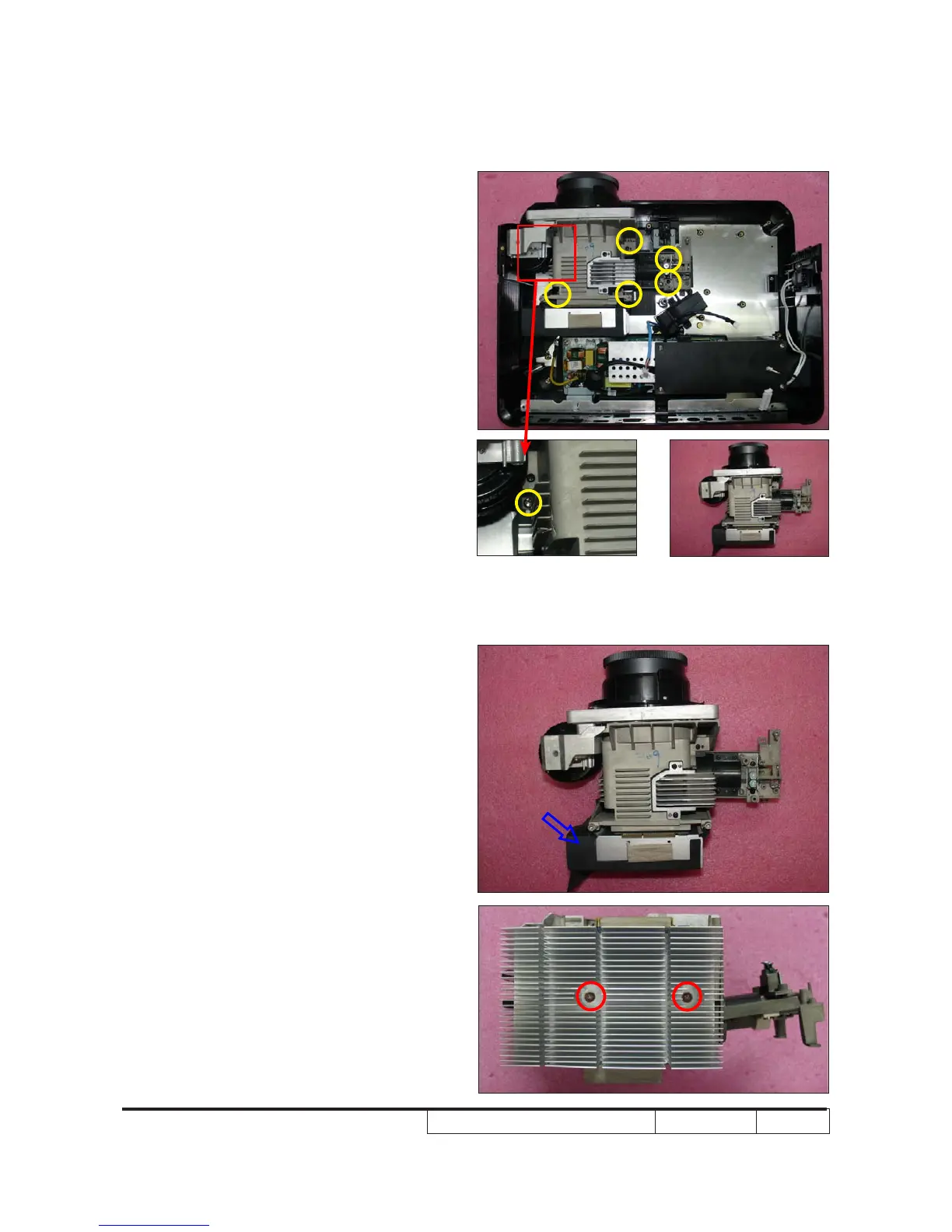

2-9 Disassemble Engine
Module
1. Unscrew 6 screws (as yellow circle) to
disassemble the Engine Module.
2-10 Disassemble DMD Chip
and DMD Board
1. Tear off the black mylar (as blue arrow
point).
2. Unscrew 2 screws (as red circle).
