Acer P5271 - Assemble Bottom Shielding

P5271/P5290/P5390W/P5271i Condential
2-22

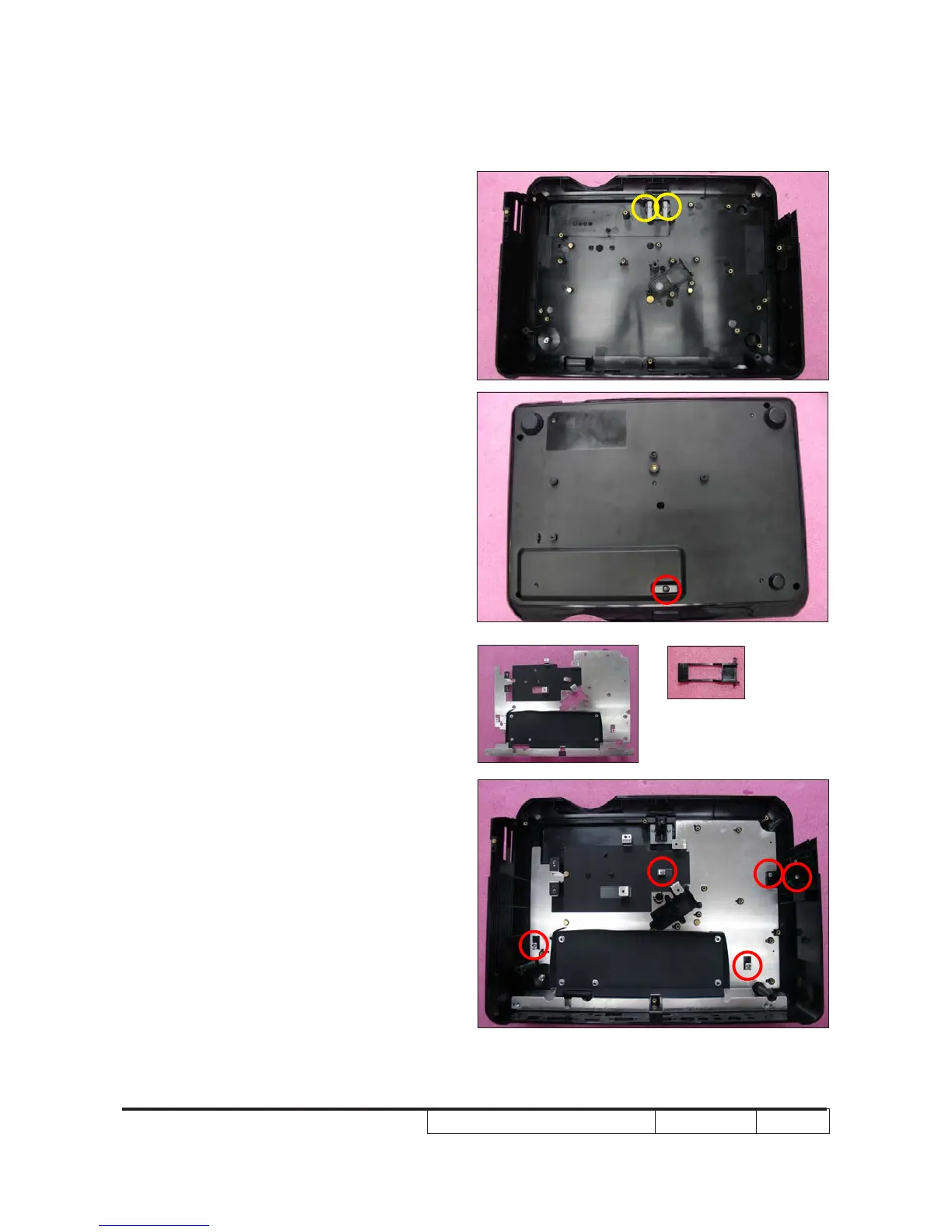

2. Screw 2 screws (as yellow circle) on the
inside of Bottom Cover.
3. Screw 1 screw (as red cricle) on the
backside of Bottom Cover.
2-22 Assemble Bottom
Shielding
1. Screw 5 screws (as red cricle) to
assemble Bottom Shielding and Lamp
Connector Holder.
