Acer P5271 User Manual

P5271/P5290/P5390W/P5271i Condential
2-19
screw 1
screw 2
2-18 Rod Adjustment
1. Environment Adjustment
- The distance between the engine and
the screen is 2M.
- This process should be done at a dark
environment (under 2 Lux).
2. Procedure Adjustment
- Change the screen to "white screen".

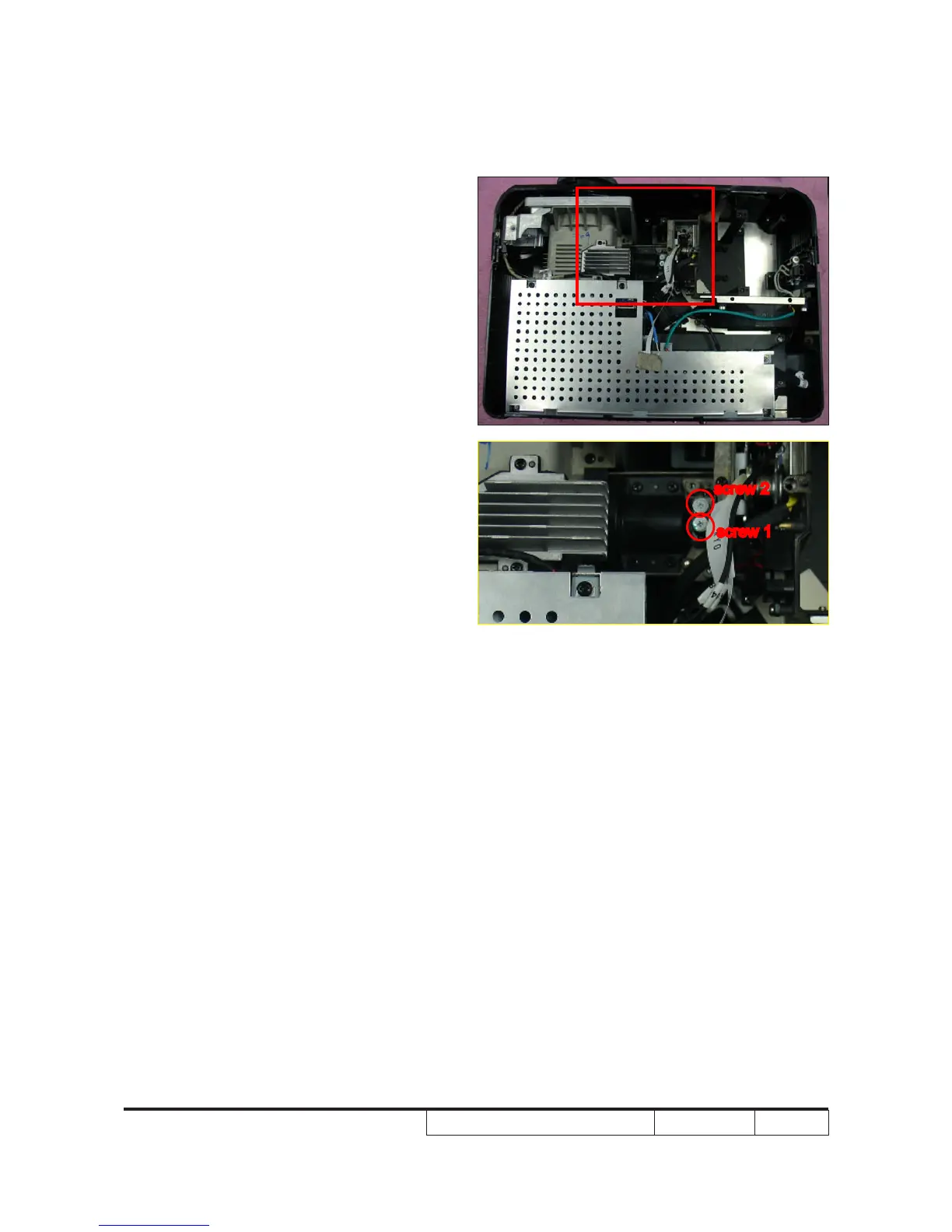

- Adjust the screws by using the rod
on the engine module to readjust the
image.
("Screw 1" should be adjusted rst, and
then "screw 2". Adjust until the yellowish
or bluish parts disappeared.)
3. Abnormal image inspection
- It should not have any abnormal color
at the frame of the image by estimating
through the eyes.
Note: - To avoid over adjusting the rod.
- After the opreation, please use the glue
to x the screws.
