P5271/P5290/P5390W/P5271i Condential
2-15

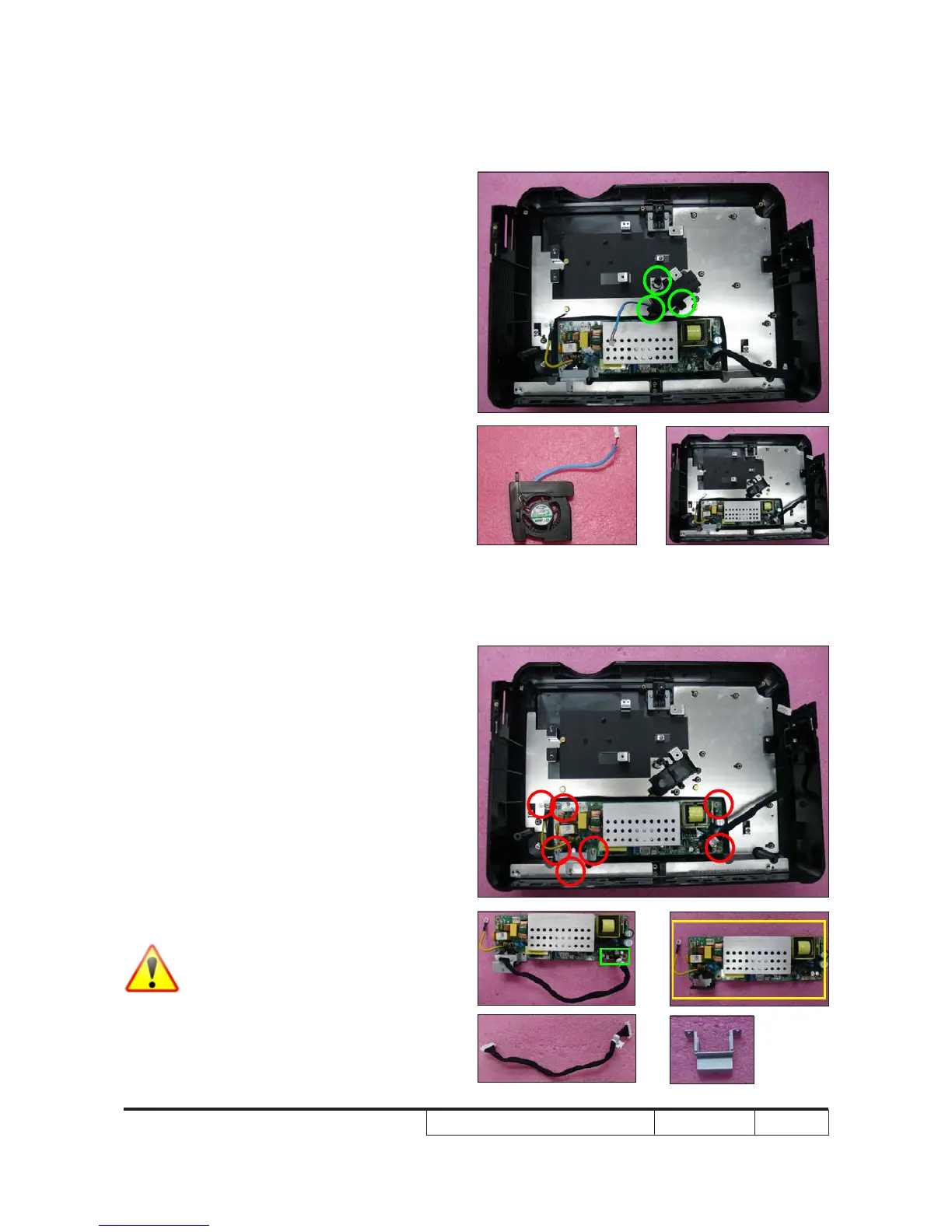

2-12 Disassemble Blower
1. Unscrew 3 screws (as green circle) to
disassemble the Blower Module.
2-13 Disassemble LVPS
Module
1. Unscrew 7 screws (as red circle) to
disassemble the LVPS Module.
2. Unplug 1 connector (as green square).
3. Remove the cable and the AC Inlet
Bracket from LVPS Module.
AC Inlet Bracket
NOTE: Circuit boards > 10 cm² has been
highlighted with the yellow rectangle
as above image shows. Please
detach the Circuit boards and follow
local regulations for disposal.
To Next Page
