Acer P5271 - Assemble Keypad Board Module

P5271/P5290/P5390W/P5271i Condential
2-33

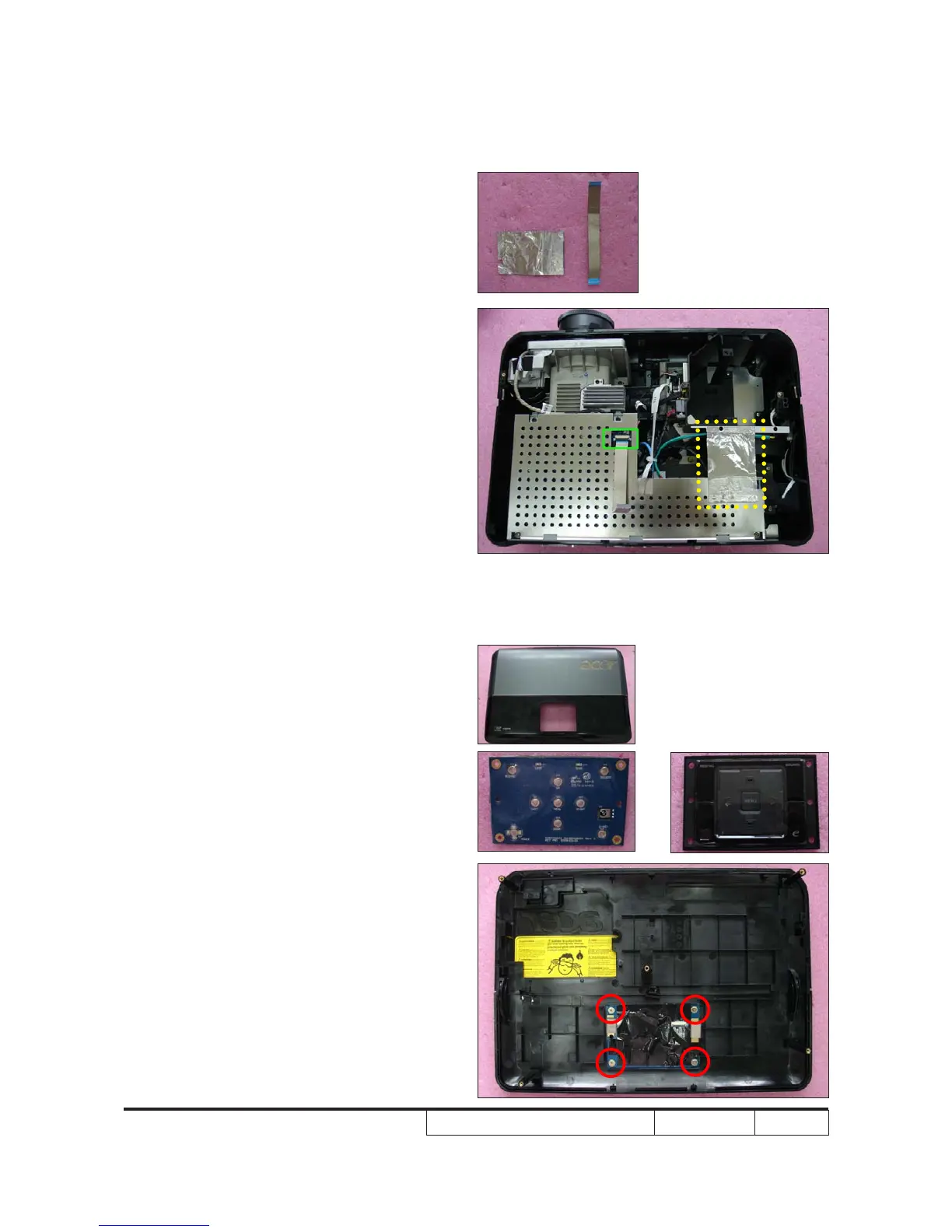

2. Stick the Heatsink Aluminum (as yellowthe Heatsink Aluminum (as yellow
dot square).
3. Plug 1 connector (as green square) to
assemble the FPC cable.
2-33 Assemble Keypad
Board Module
1. Screw 4 screws (as red circle) to
assemble the Keypad Board Module.
