Acer P5271 - Assemble DMD Chip and DMD Board

P5271/P5290/P5390W/P5271i Condential
2-26
2-27 Assemble DMD Chip
and DMD Board

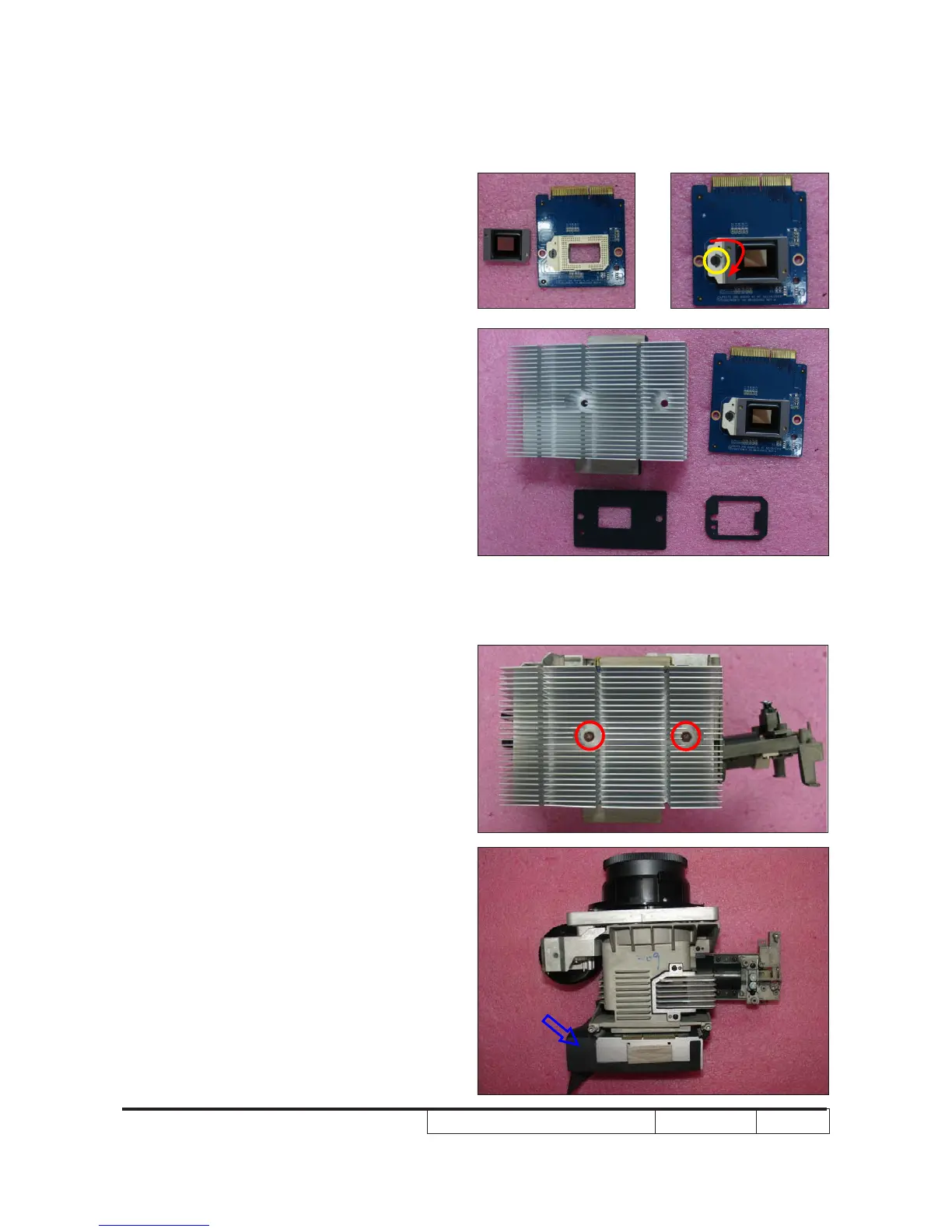

1. Rotate the screw (as yellow circle)
180° clockwise to assemble the DMD
Board and DMD Chip.
2. Assemble the Heat Sink and DMD
Module.
3. Screw 2 screws (as red circle).
4. Stick black mylar (as blue arrow point).
