Acer P5271 - Assemble Lamp Module

P5271/P5290/P5390W/P5271i Condential
2-35
2-35 Assemble Lamp Module

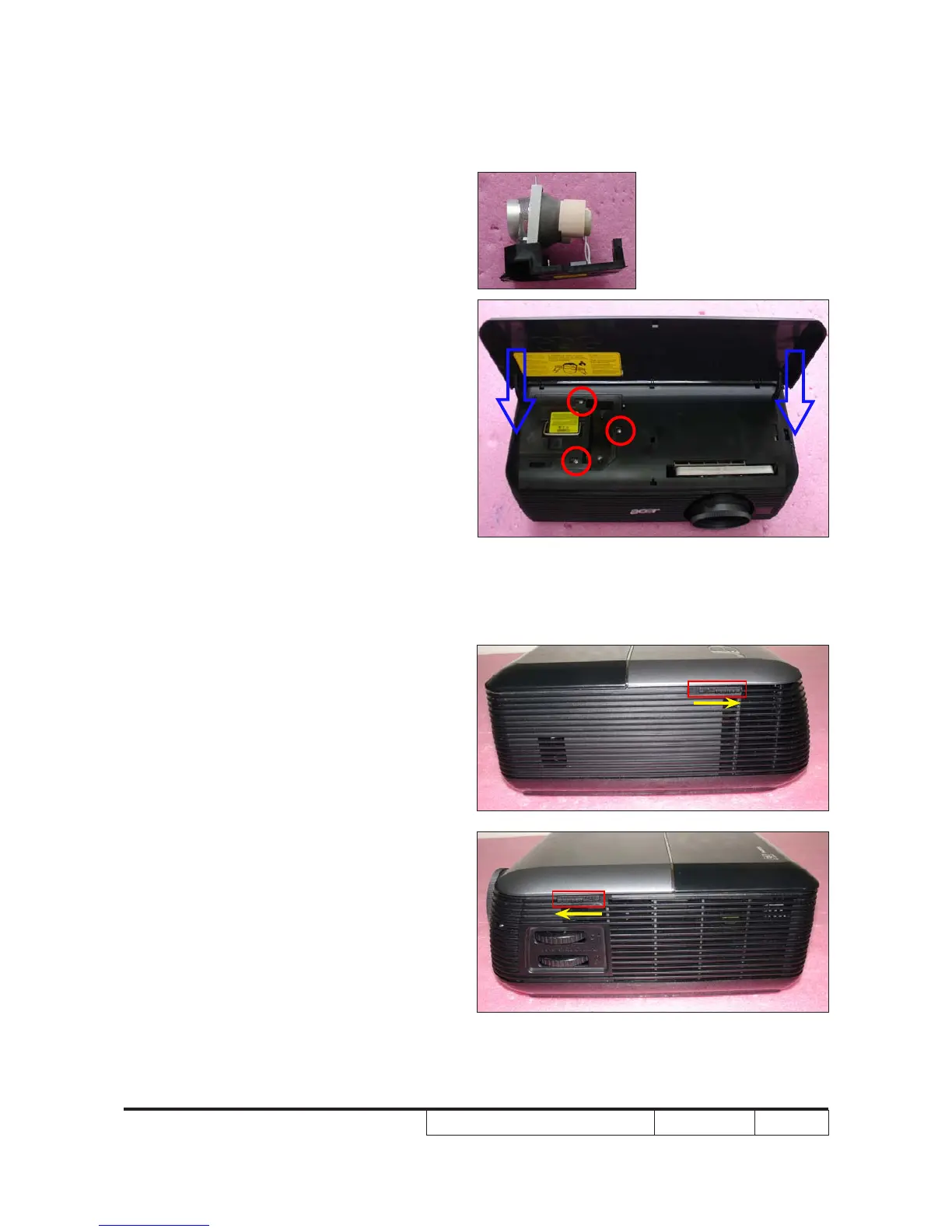

1. Assemble the Lamp Module.
2. Tighten 3 screws (as red circle) on the
Lamp Module.
3. Pull downword the Lamp Cover Module
slightly (as blue arrows point).
4. Push the two clips (as red square) as
yellow arrows point on the left/right side
of the projector.
