2-4 Disassemble Keypad
Board Module

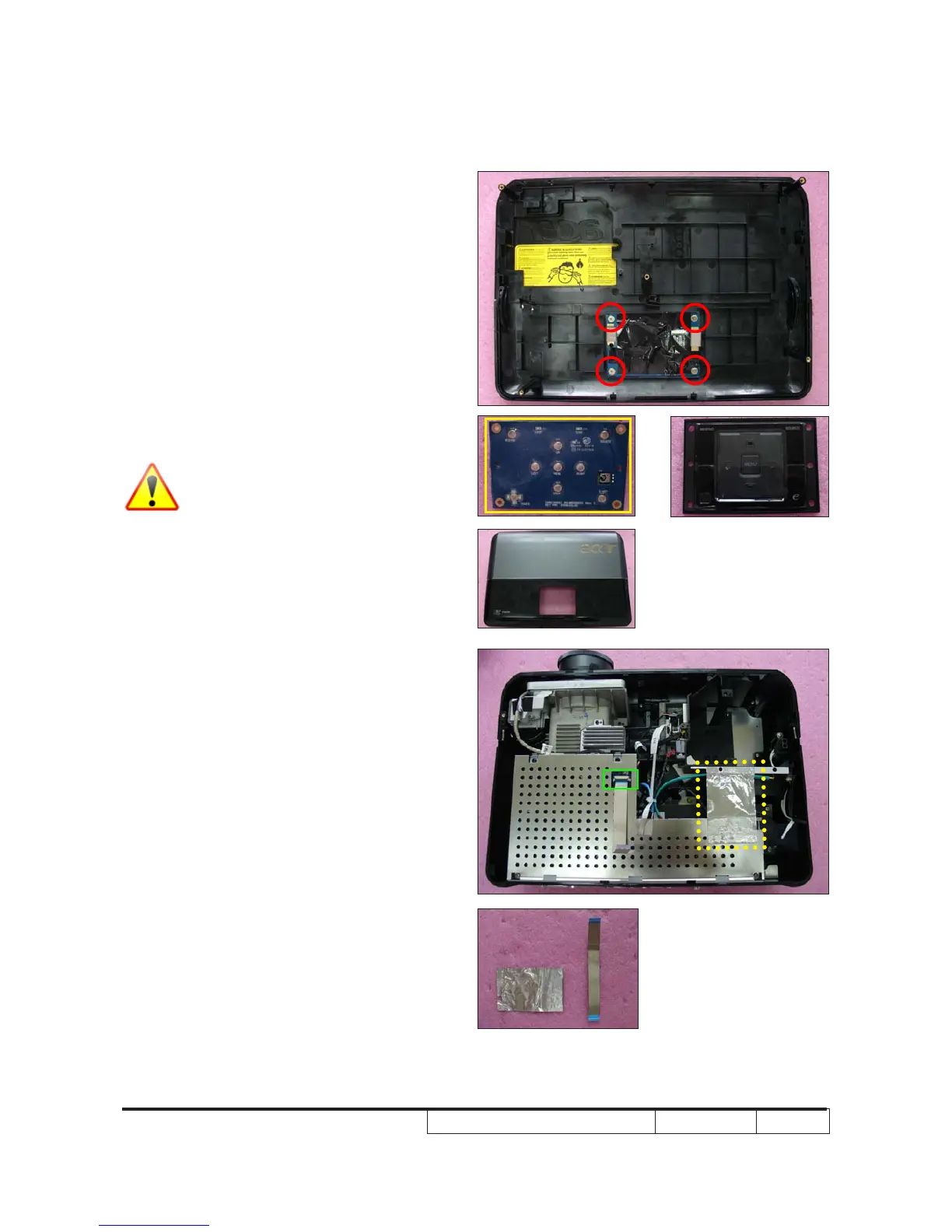

1. Unscrew 4 screws (as red circle) to
disassemble the Keypad Board Module.
2-5 Disassemble Main Board
Top Shielding
1. Unplug 1 connector (as green square) to
remove the FPC cable.
2. Tear off the Heatsink Aluminum (as
yellow dot square).
Heatsink Aluminum
FPC Cable
NOTE: Circuit boards > 10 cm² has been
highlighted with the yellow rectangle
as above image shows. Please
detach the Circuit boards and follow
local regulations for disposal.
Keypad Board
Keypad
To Next Page
