Acer P5271 - Assemble Front Cover Module

P5271/P5290/P5390W/P5271i Condential
2-30
2-30 Assemble Front Cover
Module

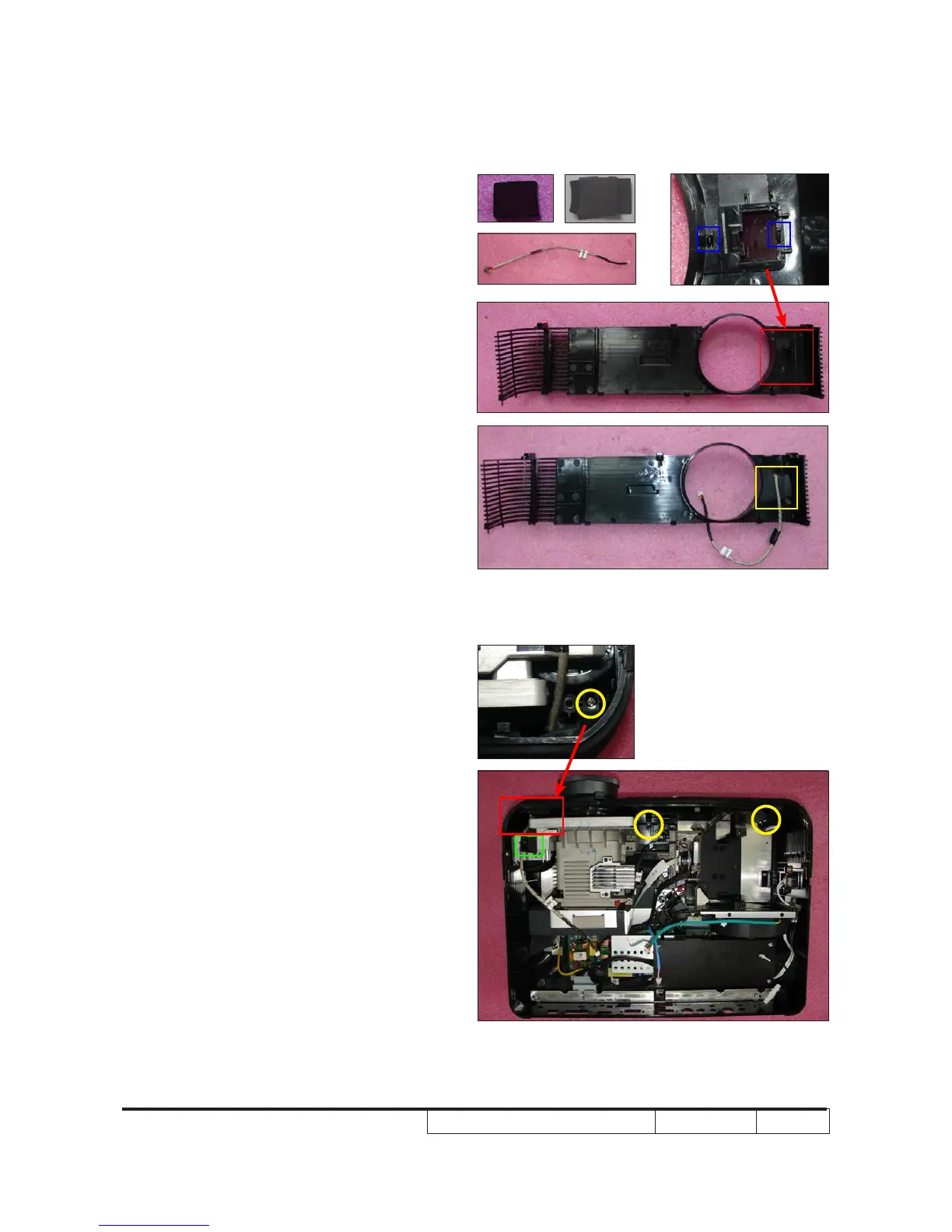

1. Fasten 2 tenons (as blue square) toFasten 2 tenons (as blue square) to
assemble IR Lens.
2. Stick black mylar (as yellow square) to
assemble IR Board.
3. Assemble the Front Cover Module.
4. Screw 3 screws (as yellow circle).
5. Stick 3M tape (as green square).
