Acer P5271 - Assemble Main Board Module

P5271/P5290/P5390W/P5271i Condential
2-31
2-31 Assemble Main Board
Module

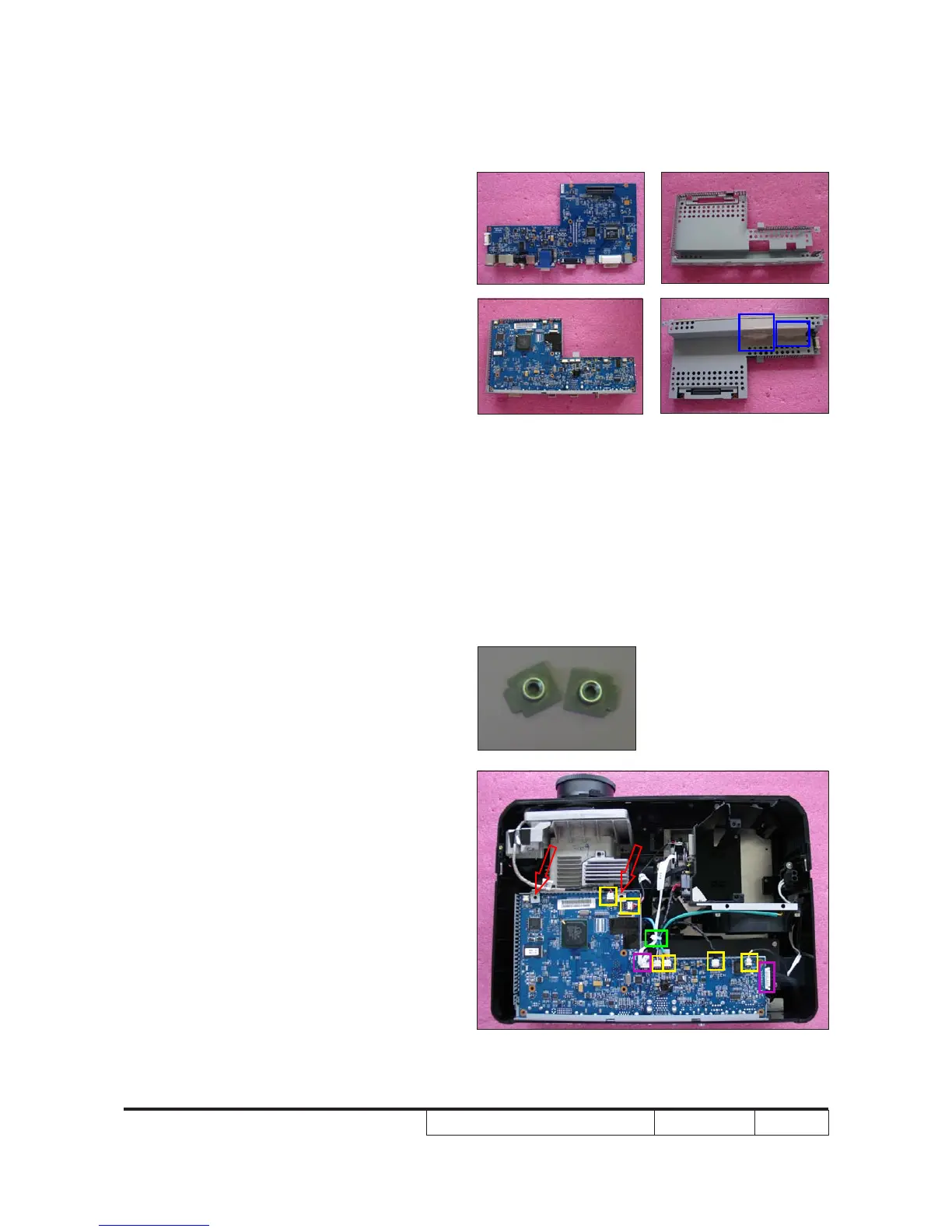

1. Stick 2 EMI tapes (as blue square) to
assemble Main Board and Main Board
Bottom Shielding.
2. Assemble the Main Board Module.
3. Plug 6 connectors (as yellow square).Plug 6 connectors (as yellow square).
4. Plug 2 connectors (as purple square)
to assemble the Color Wheel cable
and Lamp Driver to Main Board cable.
5. Tie the cables with cable tie (as green(as green
square).
6. Assemble 2 Main Board Bottom Shielding
Brackets (as red arrows point).
