2-23 Assemble Latch and
Spring

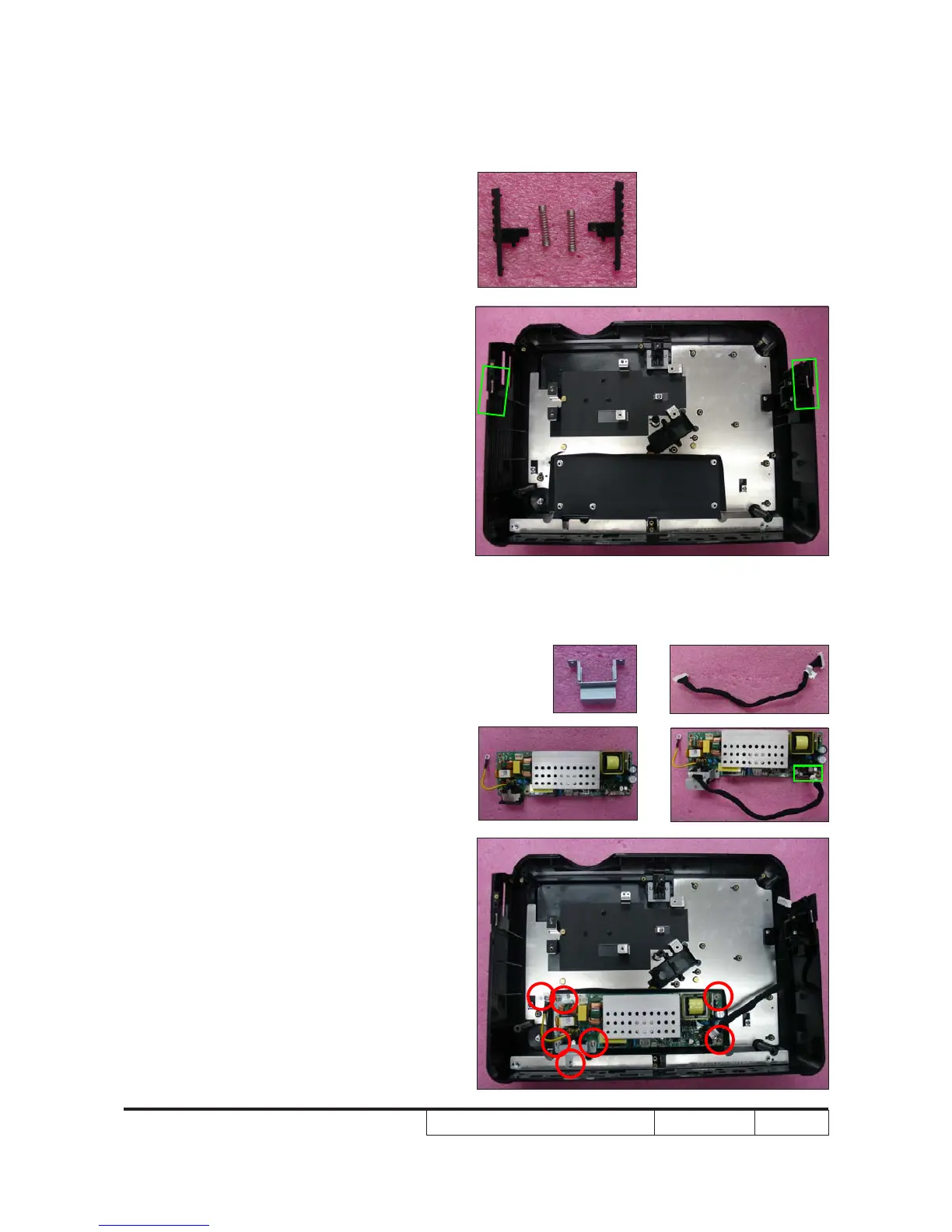

1. Fix 2 springs on each side to
assemble 2 latches (as green square).
2-24 Assemble LVPS Module
1. Assemble the cable and the AC Inlet
Bracket.
2. Plug 1 connector (as green square).
3. Screw 7 screws (as red circle) to
assemble the LVPS Module.
