Acer P5271 - Disassemble Front Cover Module

P5271/P5290/P5390W/P5271i Condential
2-8
2-7 Disassemble Front
Cover Module

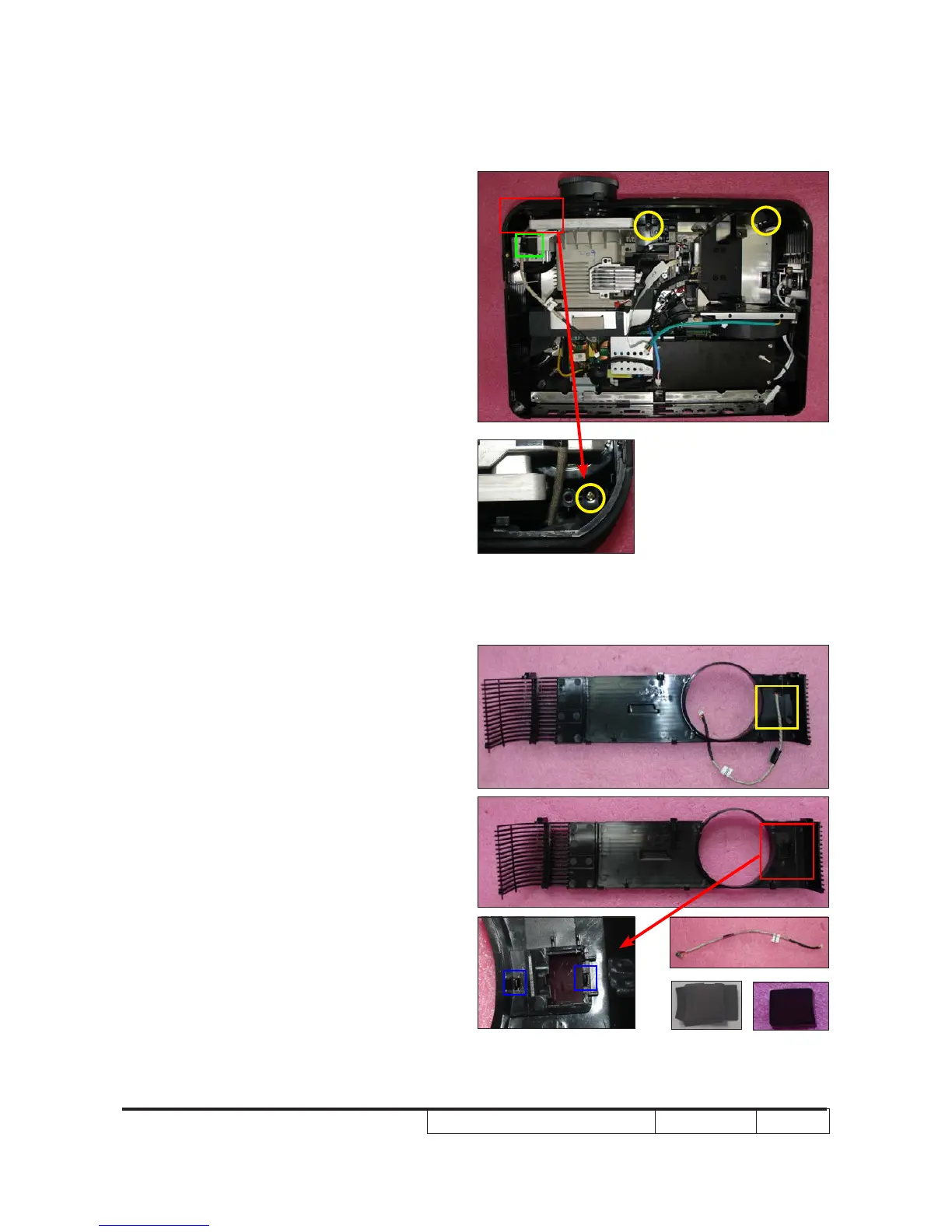

1. Tear off 3M tape (as green square).
2. Unscrew 3 screws (as yellow circle).
3. Disassemble the Front Cover Module.
4. Tear off black mylar (as yellow square) to
disassemble IR Board.
5. Unfasten 2 tenons (as blue square) to
disassemble IR Lens.
IR Lens
IR Board
