P5271/P5290/P5390W/P5271i Condential
2-7

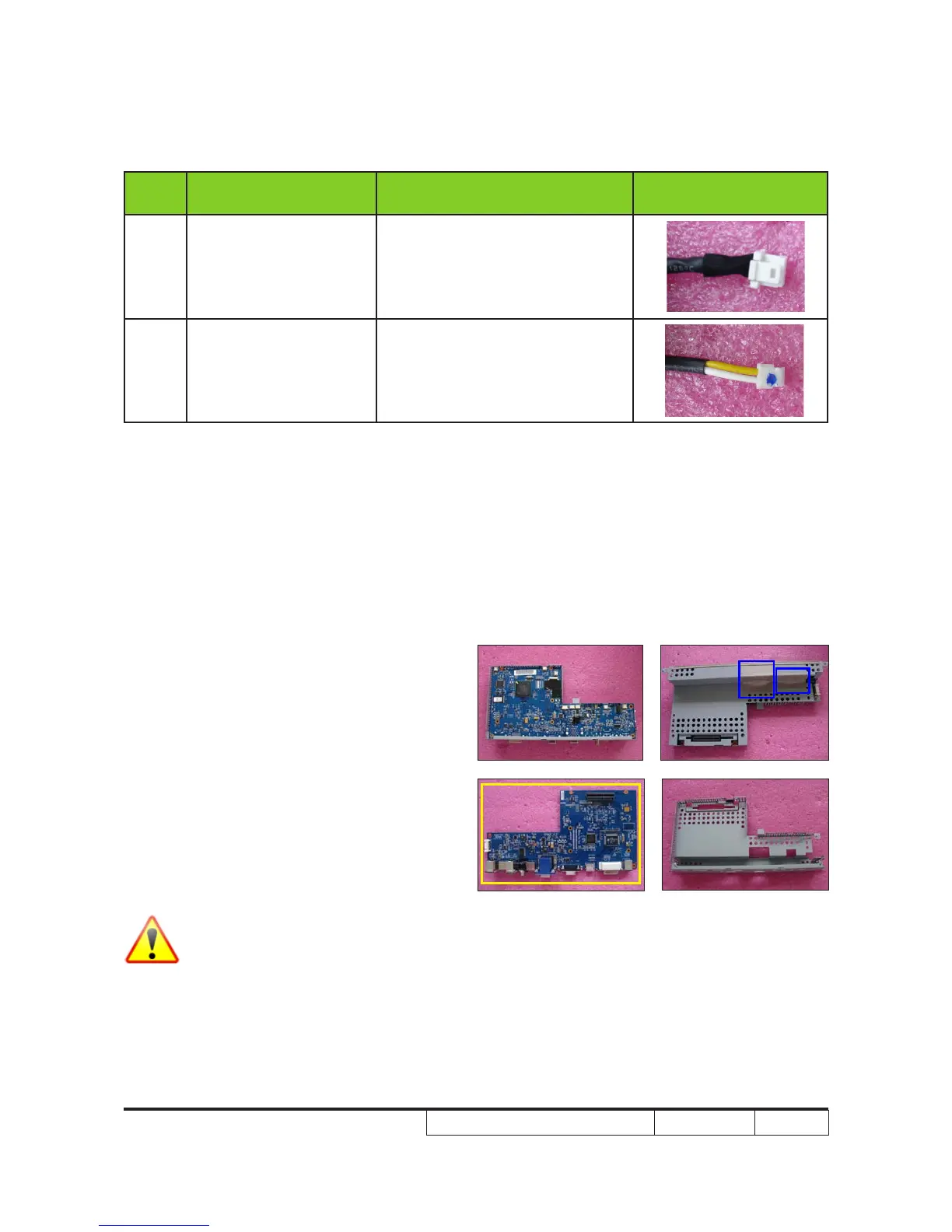

Item
Male Connector
on Main Board
The key feature Figure
E Lamp Driver Black wire tube (5 pin)
F Speaker
Compose of Yellow/White Wire
and Black wire tube (2 pin)
7. Disassemble the Main Board Module.
8. Tear off 2 EMI tapes (as blue square)
to separate Main Board Module
and Main Board Bottom Shielding.
NOTE: Circuit boards > 10 cm² has been highlighted with the yellow rectangle as
above image shows. Please detach the Circuit boards and follow local
regulations for disposal.
