P5271/P5290/P5390W/P5271i
Condential
2-29

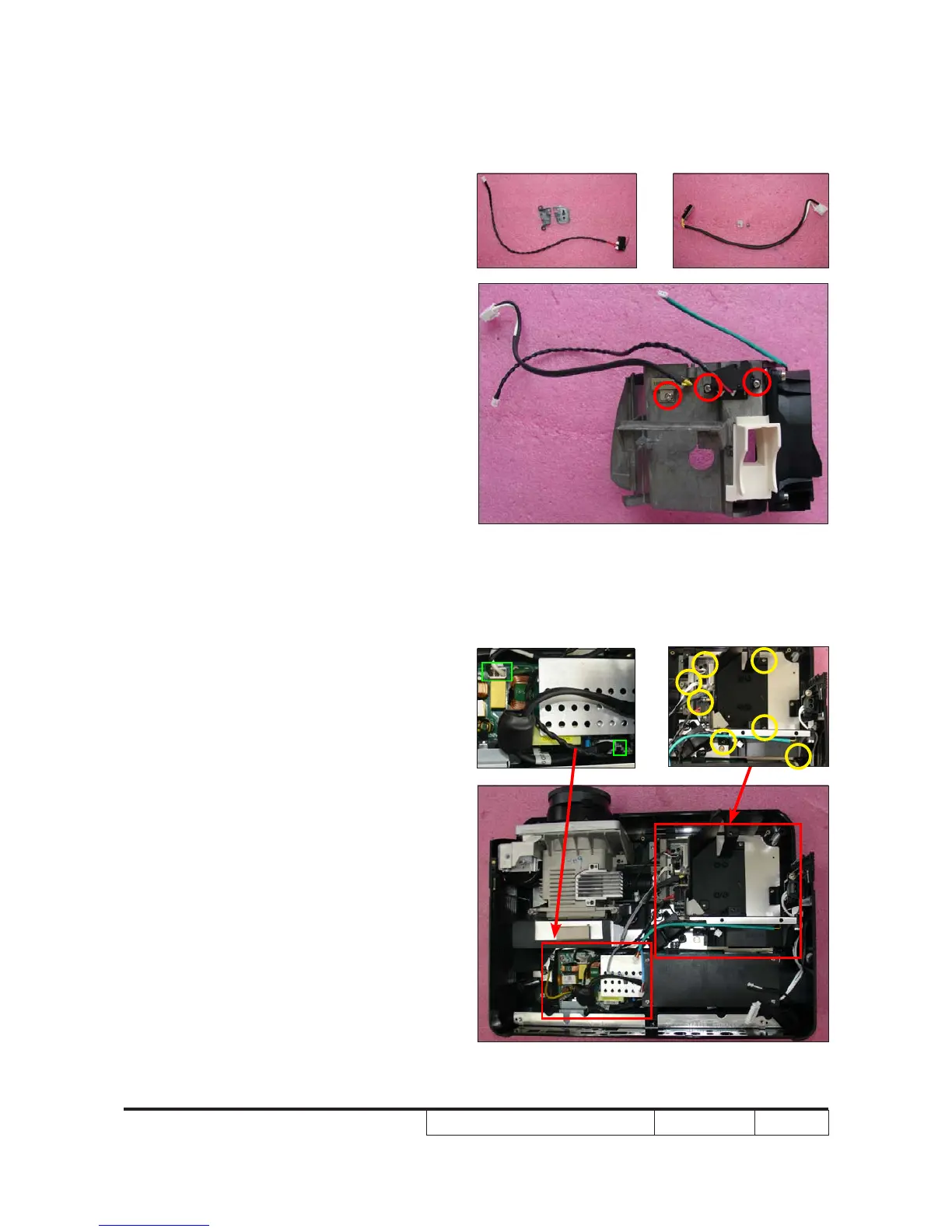

5. Screw 3 screws (as red circle) to
assemble the Interrupt Switch and
Thermal Switch.
6.
Assemble the System Fan Module.
7. Screw 7 screws (as yellow circle).
8. Plug 2 connectors (as green square).
