2-18 - Analyzer Description 2 Revision 3, Oct 2012

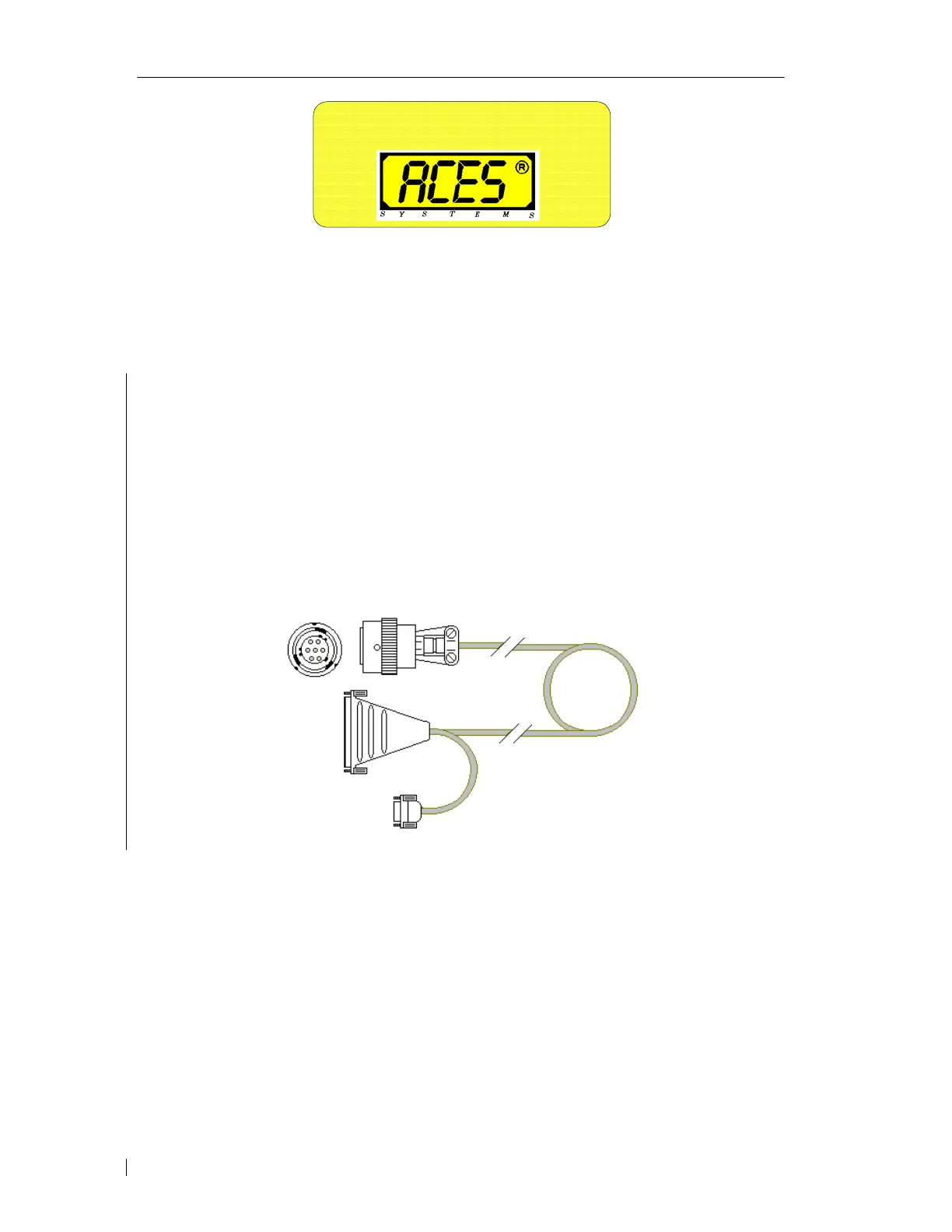

2.5.1.12. ACES Systems Balance Placard
A placard similar to the one shown above is included in the propeller balancing kit. This or a
similar placard should be attached to the spinner bulkhead upon completion of balancing to
show that the propeller has been dynamically balanced and is indexed to the crankshaft of the
engine.
2.5.2. Serial Communications Cable
An optional serial communications cable for data transfer with a personal computer is
available for use with the analyzer. The cable has both a standard DB25F and a DB9F
connector at one end and an MS 6-pin socket connector at the other. This cable is configured
to connect directly to your analyzer at the 6-pin “COMM” port at one end and to a standard
DB25M or DB9M pin for connection on the other end.
Once connected to a personal computer, you can transfer data to and from the analyzer for
use with the AvTrend software, which is supplied with the analyzer.
NOTICE: This aircraft's power train rotating
components compose an indexed assembly.
The propeller was dynamically balanced
using:
