Adaptrum ACRS2.0 Quick Start Guide (International)
CLIENT
Setup
See Installing Software Appendix to install AdaptrumTVBD executable on laptop #2
Disable/disconnect laptop wifi

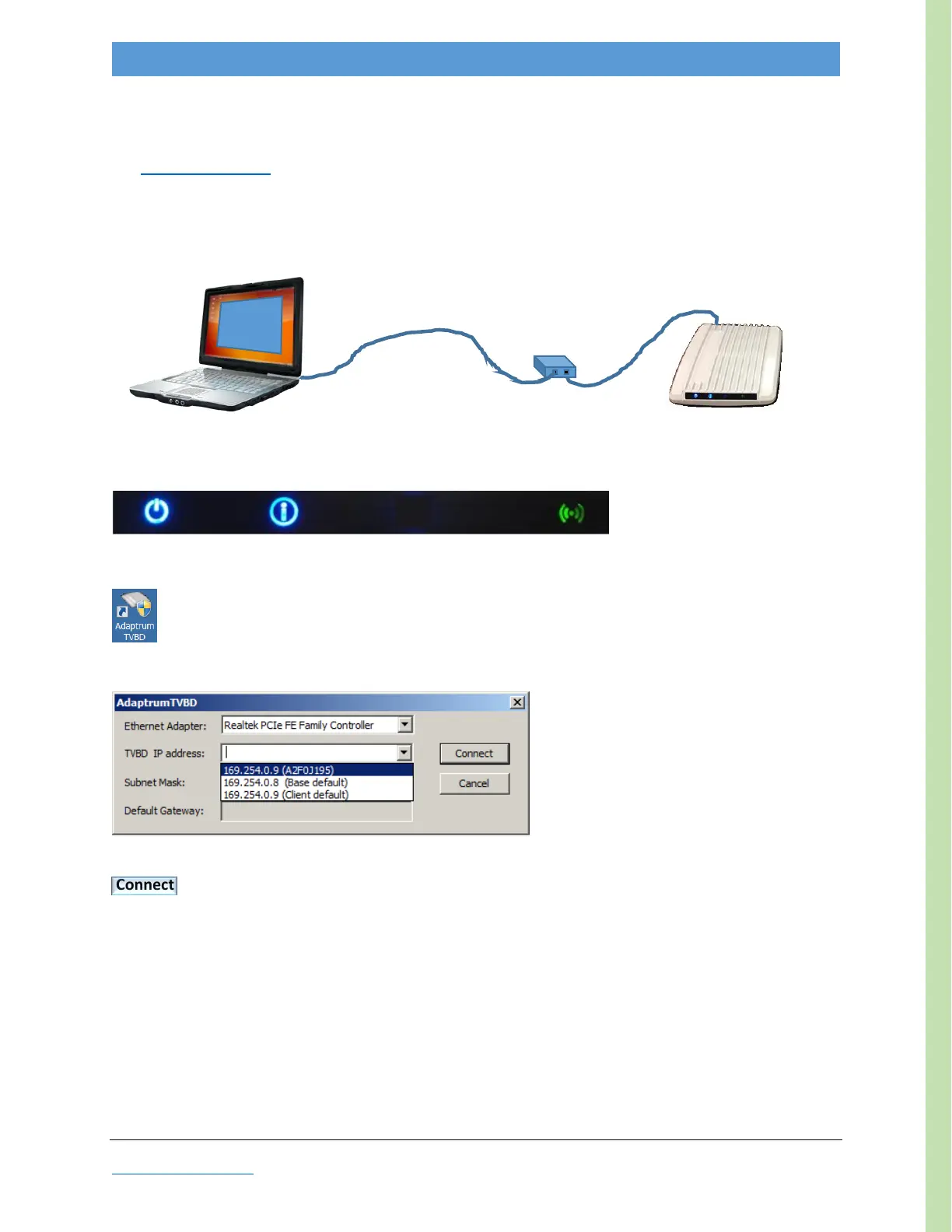

Setup apparatus for initialization: Connect cable from laptop to CLIENT (thru PoE)
Wait for the “Ready” LED configuration (~30 seconds)…
…plus ~5 seconds
Launch AdaptrumTVBD
Allow program to make changes
In the pop-up, pull down TVBD IP choices…
…select (auto-discovered) CLIENT unit
Note: non-default TVBD appears as IP address + serial number (in parentheses)—first line in example above
Connect
PoE
CLIENT
LAPTOP
#2
Adaptrum
TVBD GUI
I
CLIENT SETUP
