On the CLIENT, in addition to specifying unit name and IP address and performing (local) firmware
updates, MAC addresses may be added and/or removed from the Filter Table.

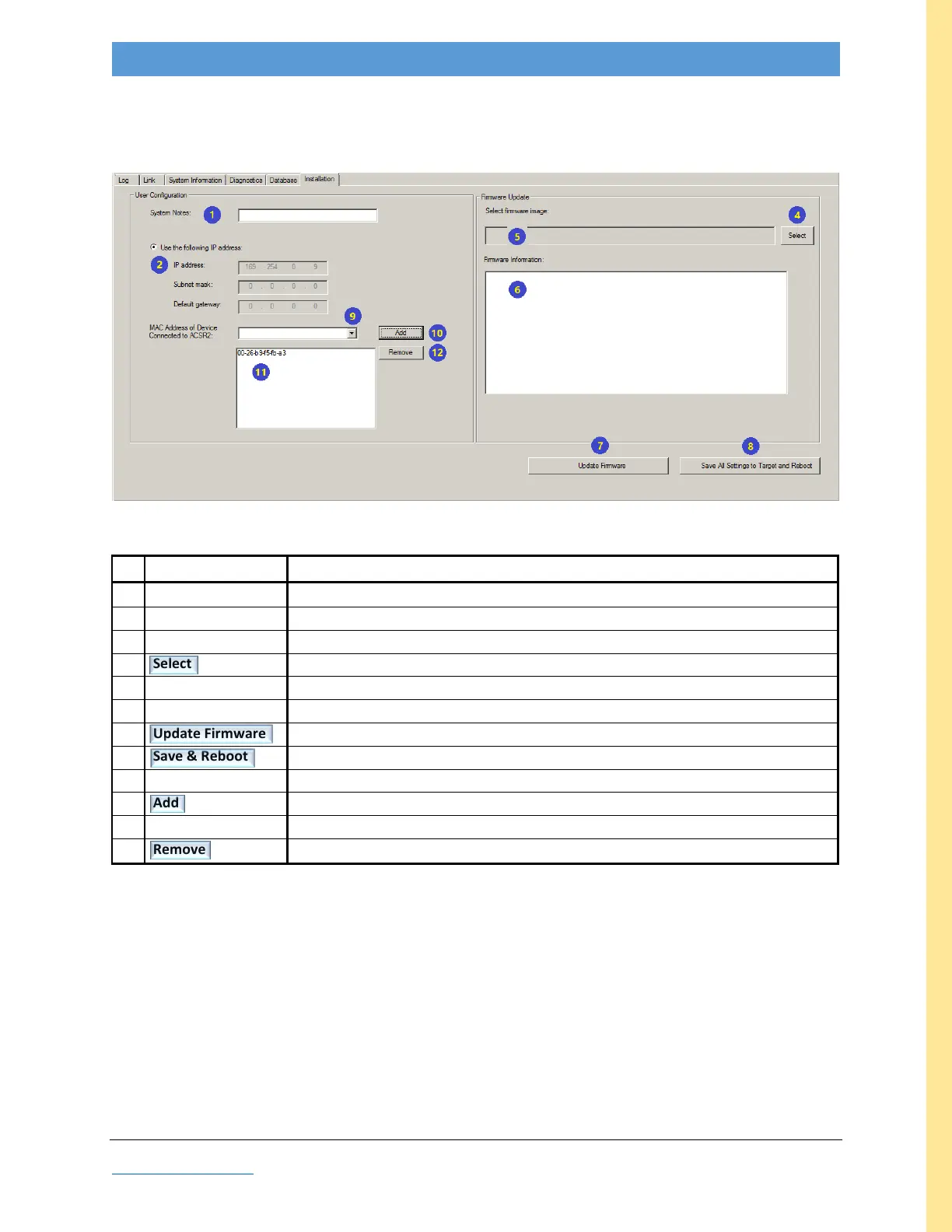

Figure 30: GUI screenshot: CLIENT Installation tab
#
FIELD
DESCRIPTION
1
System Notes
user-entered unique unit name (highly recommended to fill this out)
2
IP Address
default address cannot be changed
3
-
-
4
Select
browser to navigate to desired firmware (aip) target file
5
file path/name
name of selected file (must be a valid aip file)
6
message window
displays messages after update button 7; wait for ‘ok to reboot’ message
7
Update Firmware
initiates loading of selected file (field #5), messages display in field #6
8
Save & Reboot
saves all changes & causes unit to reboot (puts changes into effect)
9
MAC Address(s)
pulls down all MAC addresses discovered on CLIENT network
10
Add
adds MAC address (field #9) to filter list (field #11)
11
Filter Table
list of MAC addresses enabled for traffic through BASE
12
Remove
removes selected MAC address (highlighted in field #11)
Table 12: CLIENT Installation Field Descriptions
