Ethernet cable
The Ethernet cable is attached to the back of the radio unit with a weather-resistant boot, as shown in
Figure 2 and
Figure 3, below.

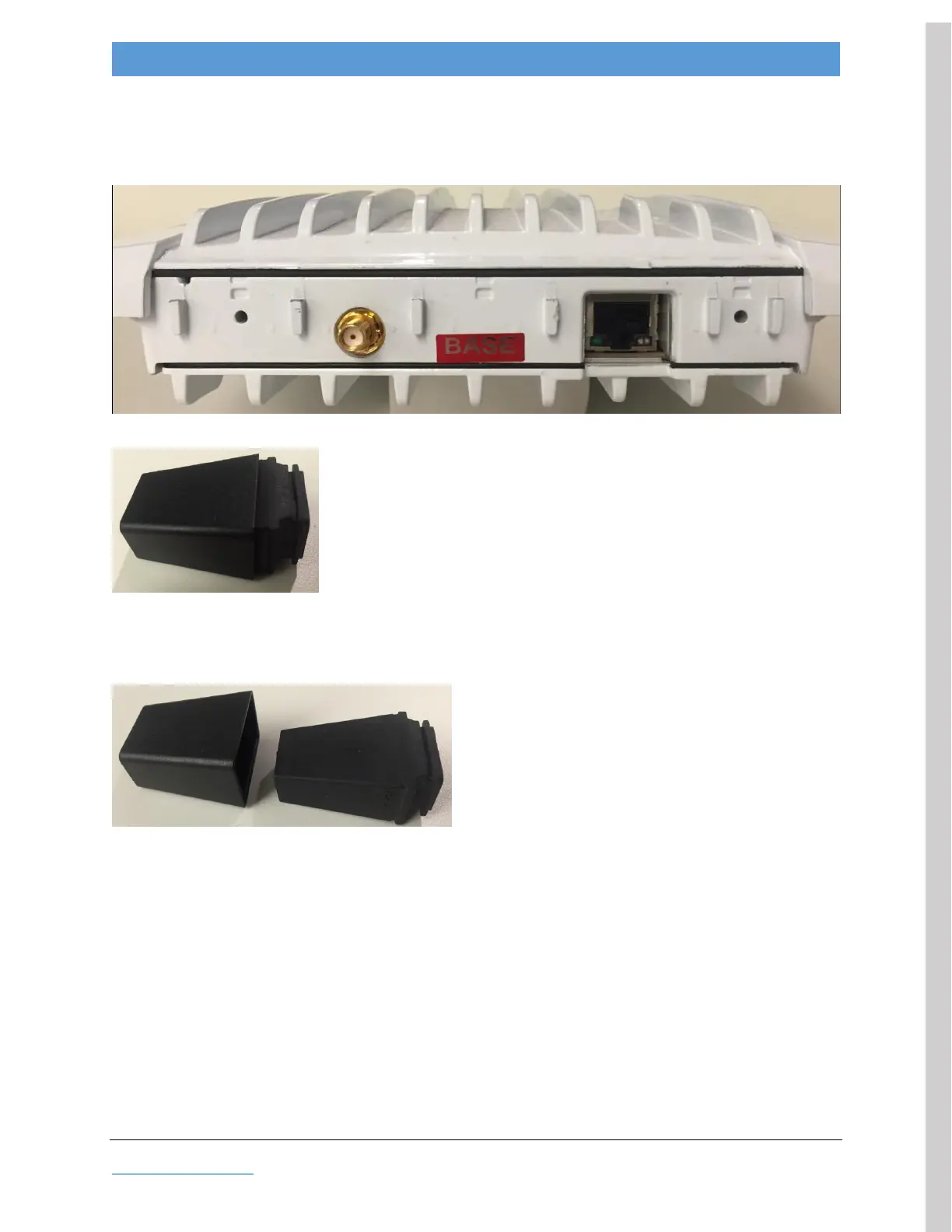

Figure 2: ACRS bottom (Ethernet RJ45 plug on the right)
Figure 3: Ethernet weather-resistant boot
The Ethernet weather-resistant boot comes in two pieces, as shown in Figure 4—a hard shell (on the
left) and a soft shell (on the right).
Figure 4: Ethernet weather-resistant boot (two pieces)
The soft shell has pre-cut slits in the small end to facilitate passing the Ethernet cable through, as shown
on the next page.
