The CLIENT’s version of the System Information tab is similar to the BASE’s, sans a few fields, as shown
below:

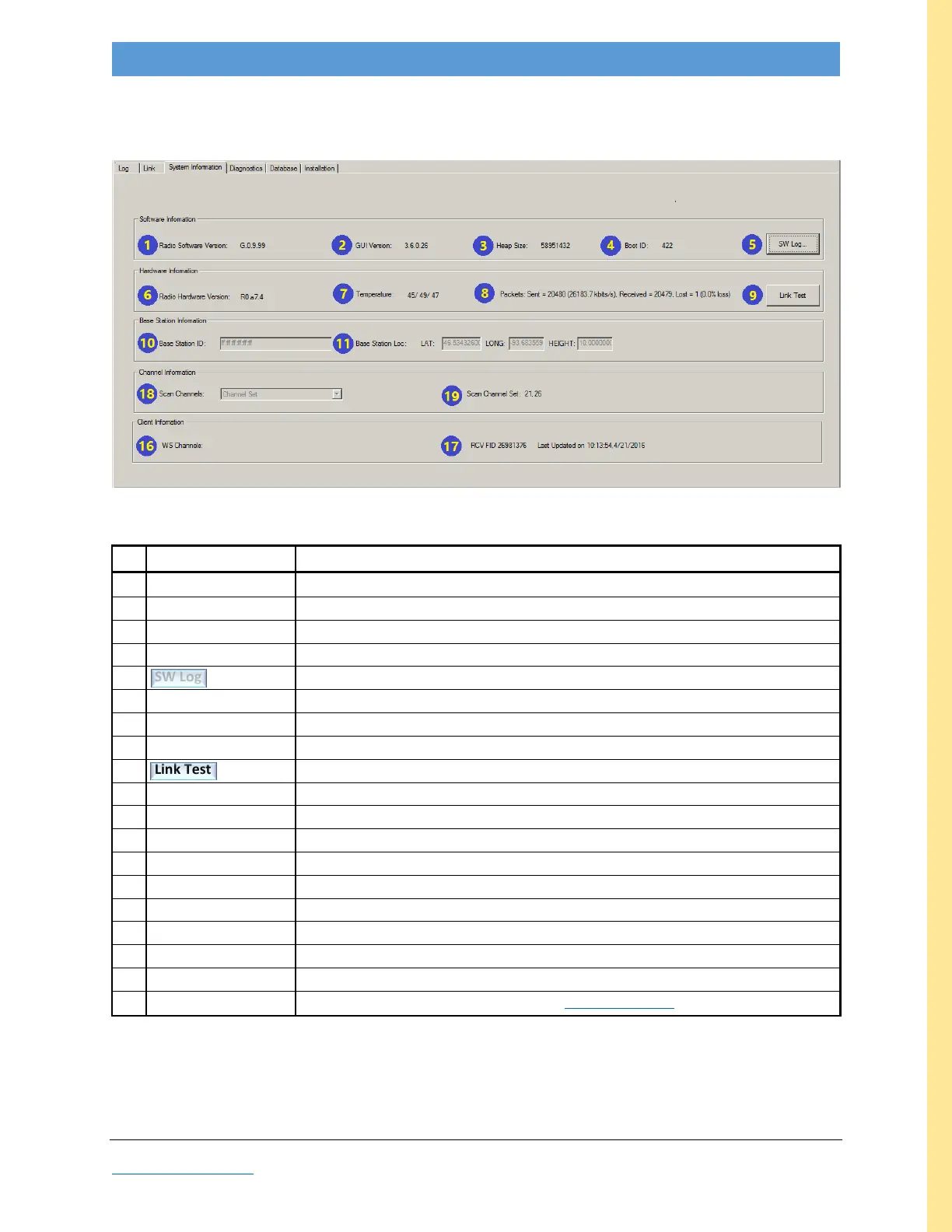

Figure 25: GUI screenshot: CLIENT System Information tab
Note: Fields in gray font are reserved for Adaptrum diagnostic use.
#
FIELD
DESCRIPTION
1
Radio Software Ver
version number of radio soft/firmware
2
GUI Version
version number of AdaptrumTVBD GUI
3
Heap Size
software heap size
4
Boot ID
reserved for diagnostics: boot sequence number
5
SW Log
reserved for diagnostics: initiates capture of unit messages
6
Radio Hardware Ver
version number of hardware image
7
Temperature
board temperature in degrees C; updated by Device & Channel pane fields #6 & #7
8
Link Test results
packets sent/received and Lost count results for “Link Test” (field #9)
9
Link Test
initiates packet transmissions for test; results found in field #8
10
Base Station MAC
Base Station ID
11
Base Station Loc
LAT/LNG/AGL of this BASE unit (entered in Database tab field #2)
12
13
14
15
16
WS Channels
set of channel numbers authorized for CLIENT by database source
17
RCV FID
reserved
18
Scan Channels
“Channel Set” means CLIENT is constrained to using channels specified by field #19
19
Scan Channel Set
all channels specified in the Channel Set (Channel Scan List)
Table 7: CLIENT System Information Field Descriptions
