Antenna Cable

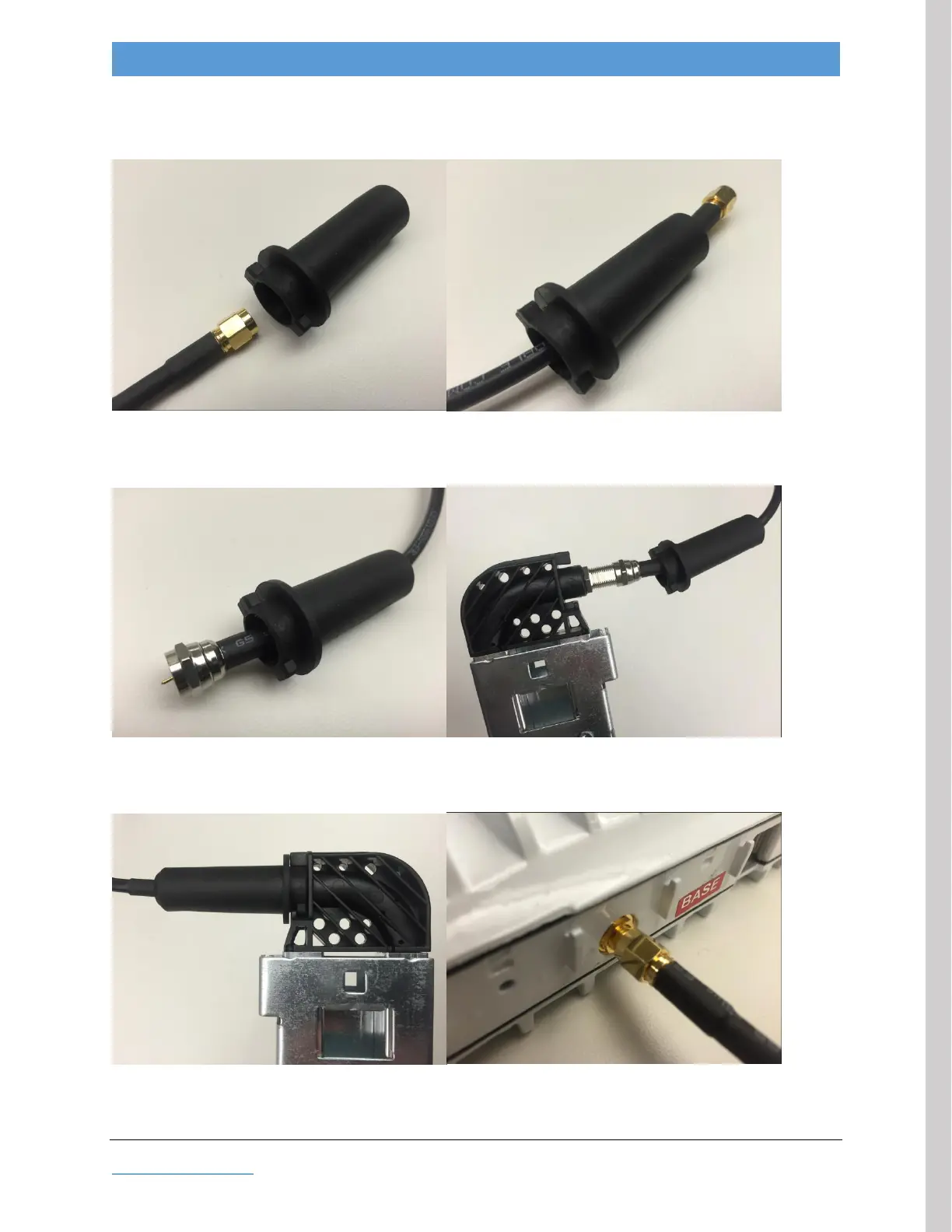

Before securing the cable to the ACRS unit, the antenna cable weather boot must be slipped over the
SMA connector end, as shown below (left), and gently shoved through, as shown below (right).
Figure 17: Fracarro Antenna Cable SMA Connector Through Weather Sleeve
Slide the weather boot to the other end of the cable to the F-type connector (below left); then secure
the F-type connector to the antenna (below right).
Figure 18: Fracarro Antenna F-type connector
Finish sliding the weather boot into its mating receptacle, then turn to lock in place (below left); lastly,
secure the SMA connector to the ACRS unit and wrap with electrical tape (not shown, right).
Figure 19: Antenna Cable Secured to Antenna and ACRS
Make sure the connectors are properly threaded and tight on both ends.
