Horizontal Pole
Antennas may also be mounted on horizontal cross-pieces. (See Figure 12)
To mount the antenna to a horizontal pole, insert the bolts through the antenna base side holes, as
shown below left. Make sure the bolts are fully seated (as shown for the right bolt in the left figure).

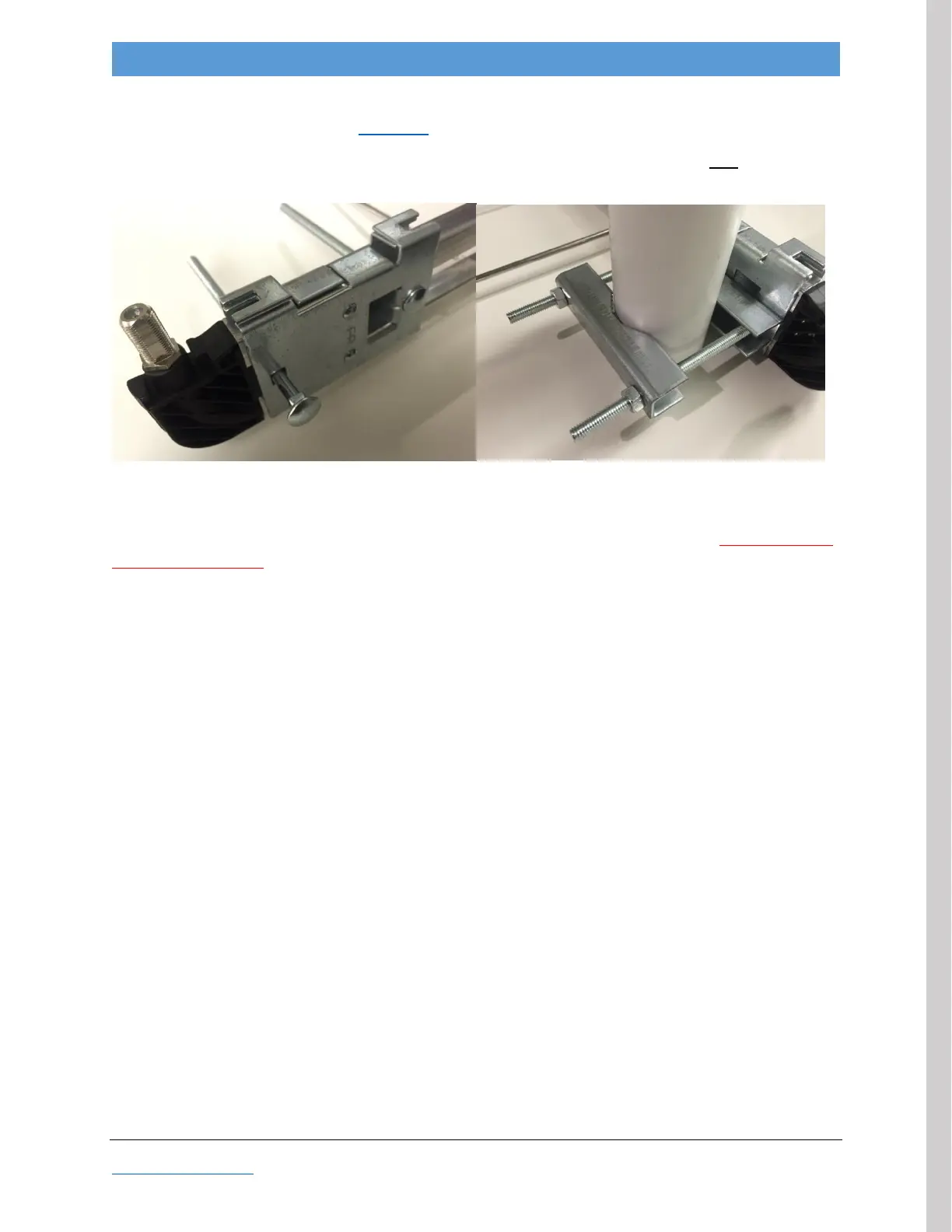

Figure 16: Fracarro Antenna Mount on Horizontal Pole
Then finish the assemble as shown above right.
Note: Figure 16 shows how the hardware fastens, not the final antenna fin orientation, which should be
vertical for operation.
