INSTALLATION
Radio Mounting
Hardware
The BASE and CLIENT units each come with the following mounting hardware:
(1) right-angle mounting plate
(2) U-bolts
(1) bag plate-to-antenna hardware
o (6) 14mm hex nuts
o (6) lock washers
o (6) flat washers
(1) bag ACRS-to-mounting-plate hardware
o (6) Philips head screws
o (6) lock washers
o (6) flat washers
Ethernet cable weather boot
Radio Unit
It is recommended to mount the ACRS unit to the base plate before mounting the base plate to the pole,
as shown below. The radio unit may be mounted on either a vertical or horizontal pole, because the four
ACRS-to-mounting-plate holes form a square pattern allowing the mounting plate to be rotated. The
radio unit must always be mounted with its connectors at the bottom.

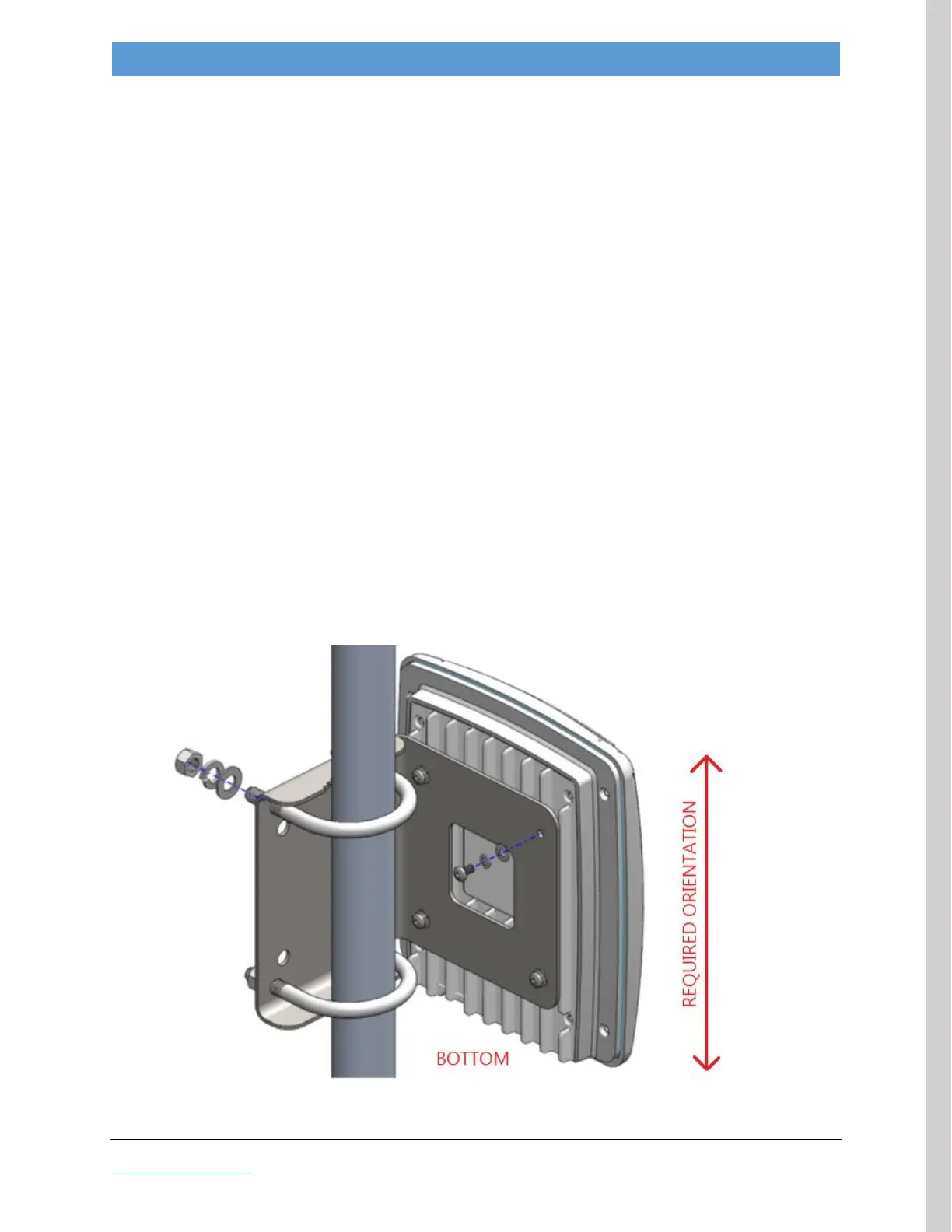

Figure 1: ACRS Mounting Diagram
