Adaptrum ACRS2.0 Quick Start Guide (International)
System Information Tab
BASE
This tab identifies the software & hardware versions, station & database info, and channel list. The user
may also capture the Software and Database Logs, as well as initiate a brief Link Test.

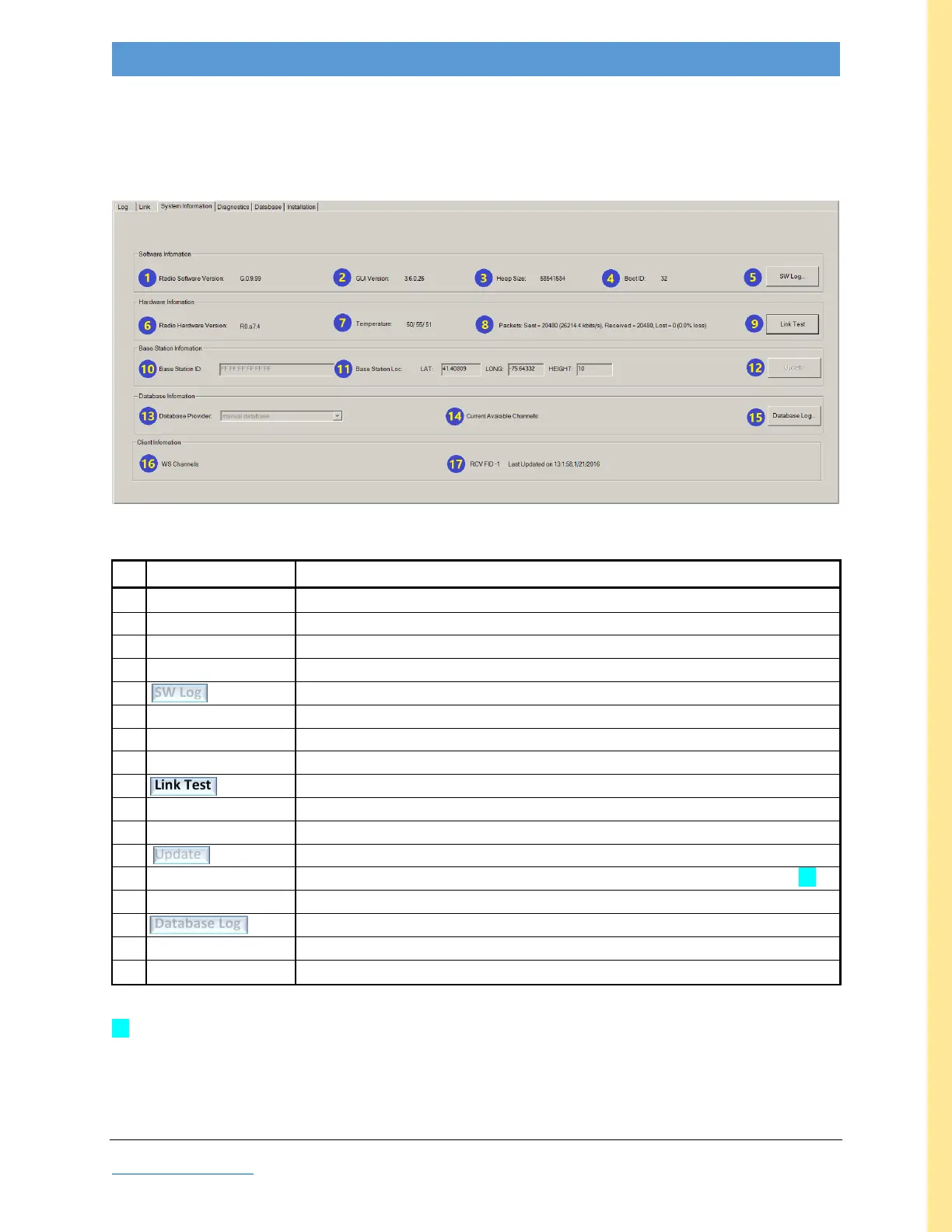

Figure 24: GUI screenshot: BASE System Information tab
Note: Fields in gray font are reserved for Adaptrum diagnostic use.
#
FIELD
DESCRIPTION
1
Radio Software Ver
version number of radio soft/firmware
2
GUI Version
version number of AdaptrumTVBD GUI
3
Heap Size
software heap size (reported for diagnostic purposes)
4
Boot ID
reserved for diagnostics: boot sequence number
5
SW Log
reserved for diagnostics: initiates capture of unit messages
6
Radio Hardware Ver
version number of hardware image
7
Temperature
board temperature in degrees C; updated by Device & Channel pane fields #6 & #7
8
Link Test results
packets sent/received and Lost count results for “Link Test” (field #9)
9
Link Test
initiates packet transmissions for test; results found in field #8
10
Base Station MAC
Base Station ID
11
Base Station Loc
LAT/LNG/AGL of this BASE unit (entered in Database tab field #2)
12
Update
reserved
13
Database source
source of channel selection constraints (determined by Database tab field #9) [1]
14
Channel set
not used for International installations (should be blank)
15
Database Log
reserved for diagnostics: initiates capture of TVWS database communication log
16
WS Channels
White Space channels; not used for International installations (should be blank)
17
RCV FID
reserved
Table 6: BASE System Information Field Descriptions
[1] This field will show the name of the specific spectrum oversight agency; if no such agency exists, this field will
be configured for “manual database” mode (as shown in Figure 24).
